Sign In for Member Pricing AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter
This is a good condition AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

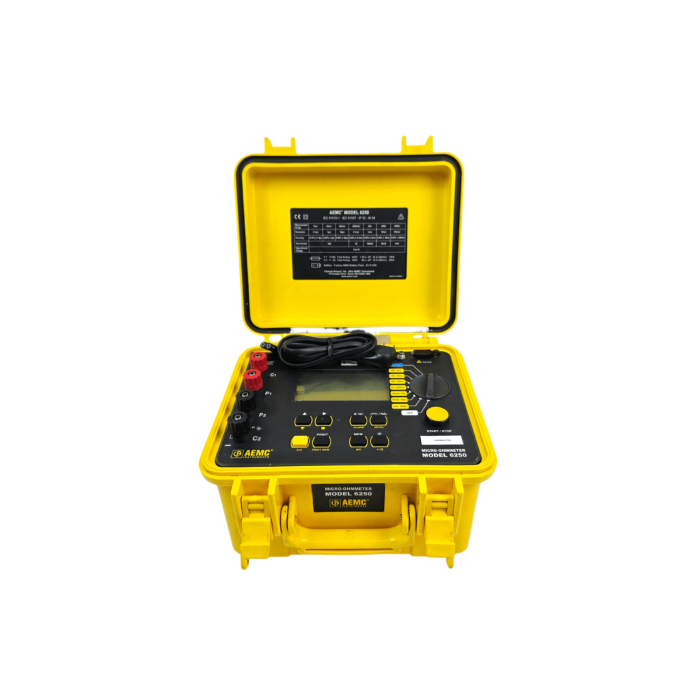

AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter
This is a good condition AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter that was tested prior to being listed and is in working condition.
Includes:
- AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter
- Power cord
AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter
The AEMC 6250 Micro-Ohmmeter is a precision low-resistance measurement instrument designed for testing contact resistance, bonding integrity, switchgear connections, bus bars, grounding systems, and other conductive paths in industrial and utility environments. It uses a four-wire Kelvin measurement method to eliminate lead resistance errors and provide highly accurate low-ohm readings.
The instrument delivers test currents up to 10A DC, allowing stable measurement of very small resistance values in electrical connections and metallic assemblies. It includes data storage, programmable test functions, and digital measurement processing for maintenance, commissioning, and preventive inspection applications.
Key Features
● Four-wire Kelvin measurement method for high accuracy low-resistance testing
● Test current output up to 10A DC
● Measures extremely low resistance values down to micro-ohm range
● Suitable for switchgear, bus bars, breakers, and bonding systems
● Internal memory for measurement storage and logging
● Automatic temperature compensation support
● Programmable test sequences and timer functions
● Rugged portable design for industrial field operation
| Specification | Value |
|---|---|
| Product Type | Micro-Ohmmeter |
| Model | 6250 |
| Measurement Method | 4-Wire Kelvin |
| Test Current Range | 10 mA to 10 A DC |
| Maximum Test Current | 10 A |
| Resistance Measurement Range | 0.1 µΩ to 2500 Ω |
| Resolution | 0.1 µΩ |
| Accuracy | ±0.25% RDG ±2 Counts |
| Test Voltage | Up to 20 V DC |
| Display Type | Backlit LCD |
| Memory Capacity | Internal Data Storage |
| Communication Interface | USB |
| Power Source | Rechargeable Battery |
| Operating Temperature | -10°C to 55°C |
| Application | Contact Resistance & Bond Testing |
Specifications
| Weight | 30 lbs |
|---|---|
| Brand | AEMC |
| MPN | EV5505 |
| Model | 6250 |
| Product Condition | Used |
What's in the box?
- AEMC 6250 Micro-Ohmmeter 10A Low Resistance Meter
- Power cord
