Sign In for Member Pricing Eclipse Fiber Optic Power Meter MT-7601
Fiber Optic Power Meter
Free from any complicated transformation
Adapts to FC/SC/ST connectors (LC with optional adaptor)
Energy saving
Automatically power off after 10 minutes of no operation
Multi wavelength
850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Supports operation in the dark
Comfortable LCD backlight display
New REF user-defined
Can store the current laser source as a new reference value
Well protected and portable design
Additional shock-proof cover & pouch bag
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fiber Optic Power Meter - An essential fiber test instrument used for absolute optical power measurement as well as fiber optic relative loss measurement. Easy to use for Telecommunication networks & FTTx/FTTH applications.
Free from any complicated transformation
Adapts to FC/SC/ST connectors (LC with optional adaptor)
Energy saving
Automatically power off after 10 minutes of no operation
Multi wavelength
850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Supports operation in the dark
Comfortable LCD backlight display
New REF user-defined
Can store the current laser source as a new reference value
Well protected and portable design
Additional shock-proof cover & pouch bag
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST & 2.5mm Universal |
| Calibrated Wavelengths | Multiple mode:850nm/1300nm/ Single mode:1310nm/1490nm/1550nm/1625nm |
| Measurement Range | +6 ~ -70 dBm |
| Accuracy | ± 0.2 dB |
| Power Measurement Linearity | ±2.0% |
| Display Resolution | +6～-60dBm：0.01 dB , -60～-70dBm：0.1 dB |
| Power Display Units | dBm, mW, μW, nW |
| Reference Comparison Value | Yes |
| Modulation Detection | 270Hz, 1KHz, 2KHz (850, 1300, 1310, 1490, 1550, 1625) |
| Operation Voice Prompts | Yes |
| Backlight | LED |
| Automatic Power Off | 10 minutes (Can be cancelled) |
| Low Battery Warning | Low battery energy |
| Body Protected | Yes |
| Battery Life | > 160 hours |
| Operating Temperature | -10～+60℃，<90% |
| Storage Temperature | -20～+70℃，<90% |
| Power source | AA/LR6 1.5V×2 pcs |
| Size | 165 x 80 X 35 (mm) |
| Weight | 180g (w/o battery) |
| Optional Accessory | LC adaptor (5MT-7601-LC) |
Specifications
| Weight | 0.85 lbs |
|---|---|
| Brand | Eclipse Tools |
| MPN | EVDS-MT-7601 |
| Model | MT-7601 |
| Product Condition | New |

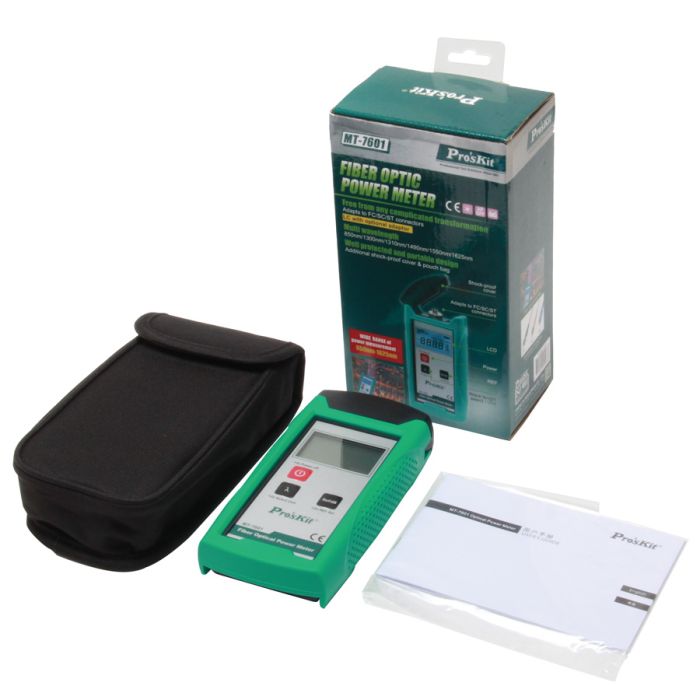

What's in the box?
- Fiber Optic Power Meter
