Sign In for Member Pricing FLIR E76 30Hz 320 x 240 Infrared Thermal Imaging Camera IR E 76 Imager
This is a great condition FLIR E76 30Hz 320 x 240 Infrared Thermal Imaging Camera IR E 76 Imager that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
FLIR E76 30Hz 320 x 240 Infrared Thermal Imaging Camera IR E 76 Imager
This is a great condition FLIR E76 30Hz 320 x 240 Infrared Thermal Imaging Camera IR E 76 Imager that was tested prior to being listed and is in working condition.

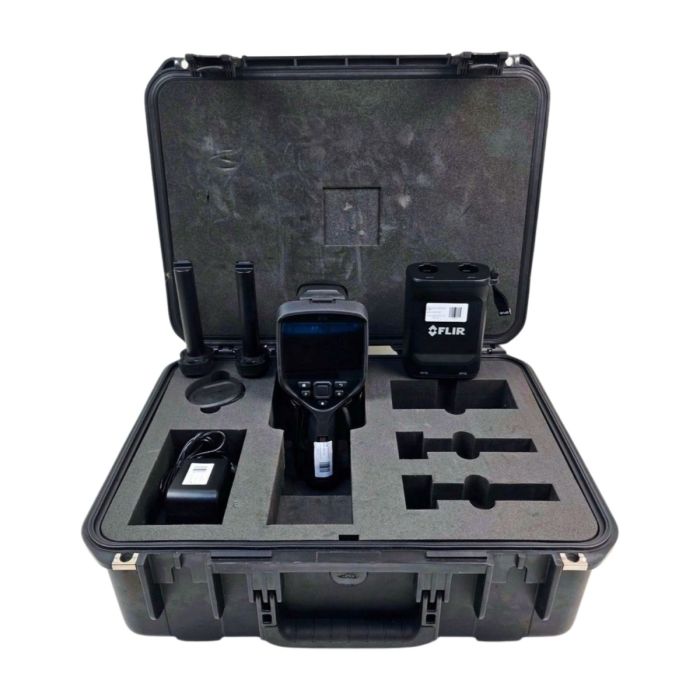

Includes:
- FLIR E76 Infrared Camera Thermal Imager
- USB PC Interface Cable
- Battery Pack
- (2) Batteries
- Carrying Case (G)
The FLIR E76 Infrared Thermal Imaging Camera is a high-performance thermography instrument designed for advanced inspection, diagnostics, and condition monitoring in industrial and electrical environments. It uses a 320 × 240 uncooled microbolometer detector to capture detailed thermal images, allowing users to identify temperature anomalies, energy losses, and equipment faults with precision.
The camera incorporates FLIR MSX® image enhancement and laser-assisted autofocus to improve image clarity and diagnostic accuracy. With real-time radiometric recording, cloud connectivity, and route-based inspection features, it enables efficient large-scale inspections and streamlined reporting workflows across maintenance and asset management applications.
Key Features
● 320 × 240 thermal resolution for detailed infrared imaging
● 30 Hz image frequency for smooth real-time thermal analysis
● Thermal sensitivity <40 mK for detecting small temperature differences
● MSX® image enhancement for improved visual detail
● Laser-assisted autofocus for precise targeting
● Wide temperature measurement range up to 1000°C (optional high range)
● Dual field-of-view lens compatibility for flexible inspections
● Built-in Wi-Fi and cloud integration for data transfer
● Designed for electrical, mechanical, and industrial diagnostics
| Specification | Value |
|---|---|
| Product Type | Infrared Thermal Imaging Camera |
| IR Resolution | 320 × 240 pixels |
| Detector Type | Uncooled Microbolometer |
| Pixel Pitch | 17 µm |
| Thermal Sensitivity (NETD) | <40 mK |
| Accuracy | ±2°C or ±2% of reading |
| Spectral Range | 7.5 – 14 µm |
| Image Frequency | 30 Hz |
| Temperature Range | -20°C to 650°C (up to 1000°C optional) |
| Digital Camera | 5 MP |
| Display | 4" 640 × 480 Touchscreen LCD |
| Digital Zoom | 1× to 4× |
| Focus | Laser-assisted + Manual |
| Field of View | 24° × 18° / 14° × 10° |
| Minimum Focus Distance | 0.18 m (wide lens) |
| Video Recording | Radiometric (.csq) |
| Storage | SD Card |
| Connectivity | Wi-Fi, USB |
| Operating Temperature | -15°C to 50°C |
Specifications
| Weight | 20 lbs |
|---|---|
| Brand | Flir |
| MPN | EV5461 |
| Model | E-76 |
| Product Condition | Used |
What's in the box?
- FLIR E76 Infrared Camera Thermal Imager
- USB PC Interface Cable
- Battery Pack
- (2) Batteries
- Carrying Case (G)
