Sign In for Member Pricing Fluke 1507 Insulation Resistance Tester Multimeter
This is a NEW Fluke 1507 Insulation Resistance Tester Multimeter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

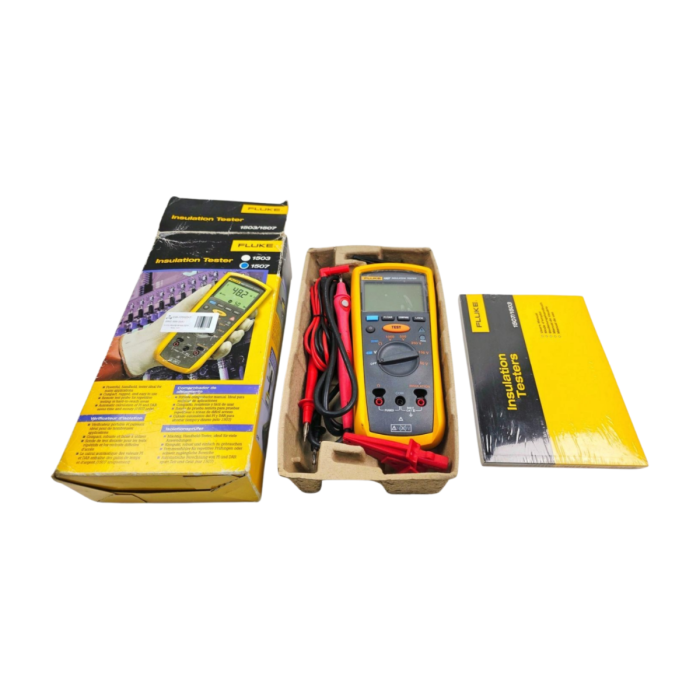

Fluke 1507 Insulation Resistance Tester Multimeter
This is a NEW Fluke 1507 Insulation Resistance Tester Multimeter that was tested prior to being listed and is in working condition.
Includes:
- Fluke 1507 Insulation Resistance Tester Multimeter
- Open Box, like new, and includes everything in the original box
Fluke 1507 Insulation Resistance Tester Multimeter
The Fluke 1507 Insulation Resistance Tester is a compact and high-performance diagnostic instrument designed for electrical insulation testing in industrial, commercial, and maintenance applications. It is widely used to evaluate the integrity of wiring, motors, transformers, and electrical systems by measuring insulation resistance and identifying potential leakage or degradation.
It offers multiple test voltage selections and advanced measurement capabilities, allowing technicians to perform precise insulation testing along with basic electrical measurements. The device is engineered for reliability and safety, featuring automatic discharge, live circuit detection, and stable measurement performance in demanding field environments.
Key Features
● Insulation resistance testing up to 10 GΩ for high-accuracy diagnostics
● Multiple selectable test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
● Automatic Polarization Index (PI) and Dielectric Absorption Ratio (DAR) calculation
● Live circuit detection prevents testing above 30 V for safety
● Auto-discharge of capacitive voltage for user protection
● Pass/Fail comparison function for repetitive testing workflows
● Measures AC/DC voltage up to 600 V for additional diagnostics
● Low-ohm continuity testing with 200 mA test current
● Large backlit LCD display for clear visibility in field conditions
● Rugged handheld design for industrial and electrical environments
| Parameter | Details |
|---|---|
| Insulation Resistance Range | 0.01 MΩ – 10 GΩ |
| Test Voltages | 50 / 100 / 250 / 500 / 1000 V |
| Test Voltage Accuracy | +20%, -0% |
| Short Circuit Current | 1 mA (nominal) |
| AC/DC Voltage Range | 0.1 – 600 V |
| Voltage Accuracy | ±(2% + 3 digits) |
| Resistance Range | 0.01 Ω – 20 kΩ |
| Continuity Test Current | >200 mA |
| Operating Temperature | -20 to 55 °C |
| Storage Temperature | -40 to 60 °C |
| Safety Rating | CAT IV 600 V |
| Display Type | Digital LCD (backlit) |
| Battery Life | ~1000 insulation tests |
| Auto Discharge Time | <0.5 sec (≤1 µF load) |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5440 |
| Model | 1507 |
| Product Condition | New |
What's in the box?
- Fluke 1507 Insulation Resistance Tester Multimeter
- Open Box, like new, and includes everything in the original box
