Fluke 1587/MDT FC - Advanced Motor and Drive Troubleshooting Kit 1587

Fluke 1587/MDT FC - Advanced Motor and Drive Troubleshooting Kit 1587

This is an excellent condition Fluke 1587/MDT FC - Advanced Motor and Drive Troubleshooting Kit 1587 that is tested and working.

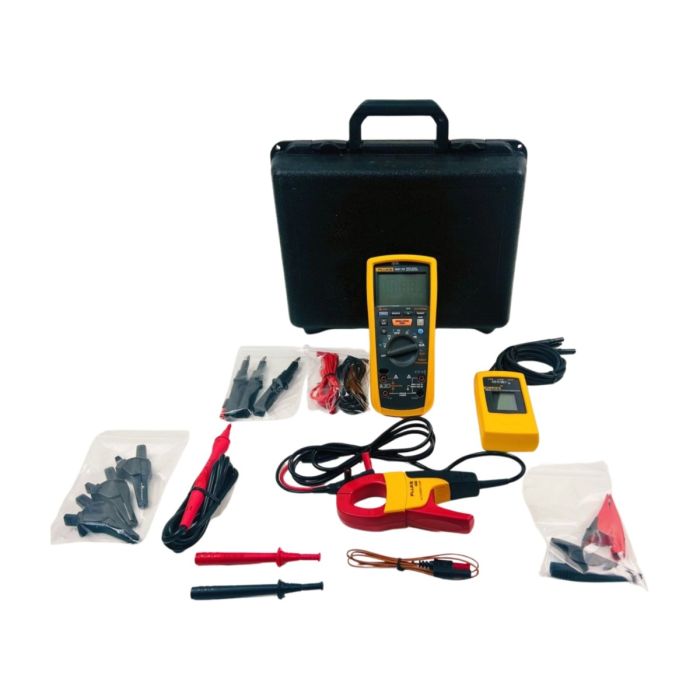

Includes:

• True-RMS Megohmmeter/Insulation Resistance Tester and Multimeter with Fluke Connect (1587 FC)
• AC Current Clamp/Banana Plugs, 1A-400A AC (i400)
• Three-Phase Rotation Indicator
• Self-Retaining Test Probes
• Alligator Clip
• Remote Probe
• Test Lead Set
• Alligator Clip Set
• K-Type Thermocouple
• Carrying Case

Key features

Includes a Fluke 1587 FC 2-in-1 Insulation DMM, Fluke i400 Current Clamp, and a Fluke 9040 Phase Rotation Indicator

With the Fluke 1587 FC, perform insulation tests, plus a wide-range of DMM tasks with confidence and ease
Use the Fluke i400 with your Fluke 1587 FC to accurately measure AC current without breaking the circuit
Check the rotation of three-phase motors easily and safely with the Fluke 9040

The Fluke 1587 FC 2-in-1 Insulation DMM

Pl/DAR measurements with TrendIt™ graphs
Memory storage through Fluke Connect Measurements app
Temperature Compensation through Fluke Connect Measurements app
VFD low-pass filter for accurate motor drive measurements
Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation test voltages 500 V, 1000 V
Insulation test: 0.01 MΩ to 2.0 GΩ
Insulation test: 0.1 MΩ to 600 MΩ
Auto-discharge of capacitive voltage
Insulation test smoothing reading
Frequency / Capacitance / Diode test / Temperature
Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
Resistance (0.1 Ω to 50 MΩ) / Continuity / Auto power off

Fluke i400 AC Current Clamp

Use with your Fluke 1587 FC to measure 1A AC to 400 A AC
1 mA/Amp output guarantees easy reading
CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
Specially designed to offer maximum utility in a very compact shape
Maximum conductor: Ø 32 mm

Fluke 9040 Phase Rotation Indicator

Large display to easily determine field rotation and phase sequence
Indication for all three phases
CAT III 600 V overvoltage rating

• True-RMS Megohmmeter/Insulation Resistance Tester and Multimeter with Fluke Connect (1587 FC)
• AC Current Clamp/Banana Plugs, 1A-400A AC (i400)
• Three-Phase Rotation Indicator
• Self-Retaining Test Probes
• Alligator Clip
• Remote Probe
• Test Lead Set
• Alligator Clip Set
• K-Type Thermocouple
• Carrying Case
