Sign In for Member Pricing Fluke 1630-2 FC Earth Ground Clamp Meter
This is a good condition Fluke 1630-2 FC Earth Ground Clamp Meter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

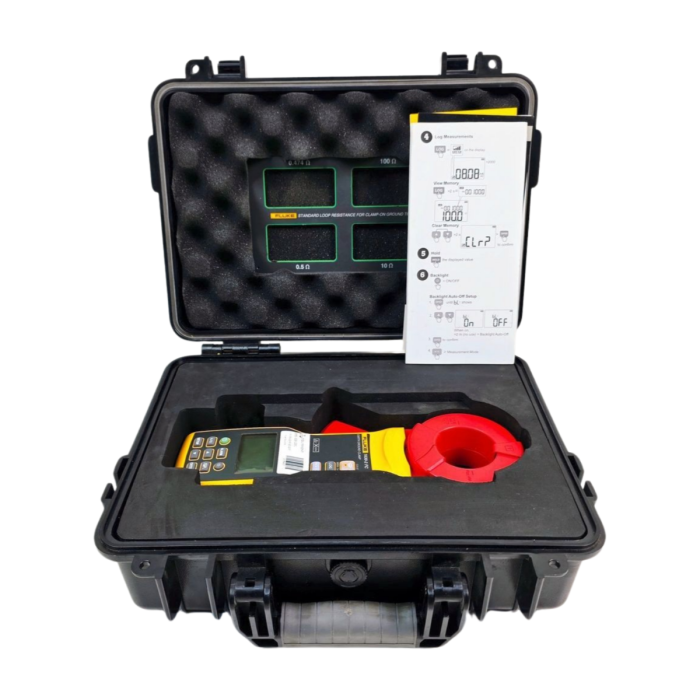

Fluke 1630-2 FC Earth Ground Clamp Meter
This is a good condition Fluke 1630-2 FC Earth Ground Clamp Meter that was tested prior to being listed and is in working condition.
Includes:
- Fluke 1630-2 FC Earth Ground Clamp Meter
- Case
- Manual
Fluke 1630-2 FC Earth Ground Clamp Meter
The Fluke 1630-2 FC Earth Ground Clamp Meter is a specialized grounding measurement instrument designed for testing earth ground loop resistance and leakage current without disconnecting grounding conductors or driving auxiliary stakes into the ground. It uses clamp-based stakeless testing technology, making it suitable for substations, telecom sites, industrial facilities, lightning protection systems, and multi-grounded installations.
The meter combines ground resistance testing, leakage current measurement, onboard memory, and wireless communication capability into a portable handheld platform. It allows technicians to perform fast grounding inspections while reducing system downtime and simplifying field testing procedures.
Key Features
● Stakeless earth ground resistance testing without auxiliary rods
● Measures AC leakage current on grounding systems
● Dual-clamp measurement technology for loop analysis
● Internal memory for long-duration data logging
● Stores up to 32,760 measurement records
● Wireless Fluke Connect compatibility
● Noise filter function for improved measurement stability
● Programmable high and low alarm thresholds
● Designed for utility, industrial, and telecom grounding systems
| Specification | Value |
|---|---|
| Product Type | Earth Ground Clamp Meter |
| Model | 1630-2 FC |
| Measurement Method | Stakeless Ground Loop Testing |
| Ground Resistance Range | Up to 1500 Ω |
| Leakage Current Range | Up to 30 A AC |
| Frequency Range | 40 Hz – 1 kHz |
| Maximum Earth Voltage | 1000 V |
| Display Resolution | 9999 Counts |
| Data Logging Capacity | 32,760 Records |
| Logging Interval | 1 s to 59 min 59 s |
| Jaw Opening Capacity | Approx. 40 mm |
| Connectivity | Wireless |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
| Protection Rating | IP30 |
| Operating Temperature | -10°C to 50°C |
| Power Source | 4 × AA Batteries |
| Battery Runtime | >15 Hours |
| Application |
Ground Resistance & Leakage Testing |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5497 |
| Model | 1630-2 FC |
| Product Condition | Used |
What's in the box?
- Fluke 1630-2 FC Earth Ground Clamp Meter
- Case
- Manual
