Fluke 1735 Three Phase Power Logger Analyst

Fluke 1735 Three Phase Power Logger Analyst

This is a great condition Fluke 1735 Three Phase Power Logger Analyst, with brand new battery,  shows normal signs of use, wear and tear that is tested and working.

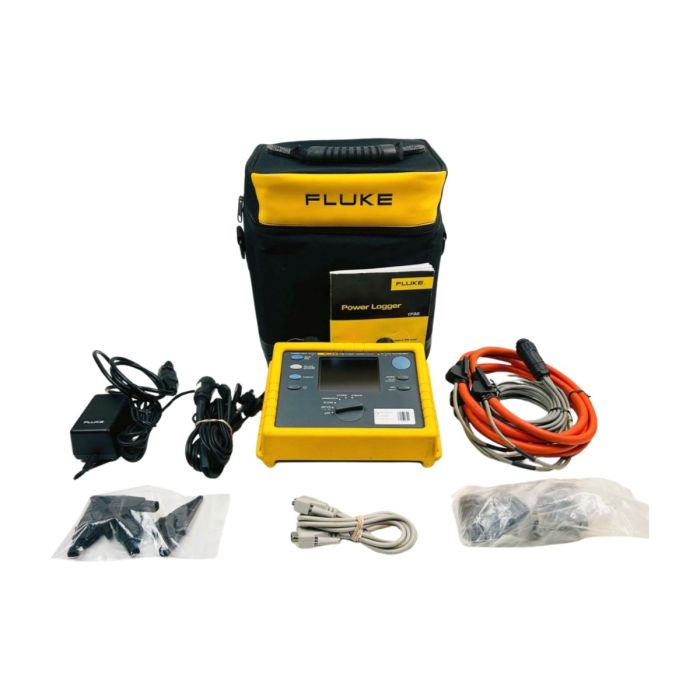

Includes:

• Fluke 1735 Three-Phase Power Logger Analyst

• Fluke 4-Phase Flexi Set

• Fluke 1735 Voltage Probe

• (4) Fluke Alligator Clips

• 1735 Getting Started Guide

• AC Adapter/Charger

• USB PC Interface Cable

• User Manual

• Carrying Case

Fluke 1735 Three-Phase Power Logger (Analyst)

Analyze. Log. Report. — Your all-in-one tool for power quality monitoring, load diagnostics, and energy assessments.

Overview

The Fluke 1735 is a versatile, compact, and rugged power quality and energy logger designed for conducting load studies, energy audits, and identifying power anomalies. Equipped with flexible current probes and a color display, it’s ready to deploy quickly on three-phase systems to log a broad set of electrical parameters.

Key Features

• Extended Logging Duration: Capture power and associated parameters continuously for up to 45 days.

• Demand Monitoring: Track maximum power demand over user-defined averaging intervals.

• Energy Efficiency Verification: Compare energy consumption before and after efficiency upgrades.

• Harmonics Analysis: Record harmonic distortion in both voltage and current up to the 50th harmonic.

• Event Capture: Automatically registers voltage dips, swells, and interruptions.

• Live Feedback: Color display shows waveforms and trend indicators for real-time setup validation.

• Complete Measurement Coverage: Includes 4 flexible current probes (15 A / 150 A / 3000 A) for measuring all three phases plus neutral.

• Reporting Software Included: Generates graphs, trends, and professional reports via Power Log software.

Technical Specifications

• Display: ¼ VGA (320 × 240 pixels), full-color with backlight and adjustable contrast

• Memory: 4 MB flash (approx. 3.5 MB available for logged data)

• Sampling Rate: 10.24 kHz with synchronization to 50/60 Hz power systems

• Power Source & Runtime: NiMH battery pack with AC adapter; typical runtime >12 h (low backlight), >6 h (high backlight)

• Dimensions & Weight: 240 × 180 × 110 mm, ~1.7 kg including battery

• Operating Conditions:

  • Working Temp: –10 °C to +50 °C (storage: –20 °C to +60 °C)

  • Climatic Class: C1 per IEC 654-1

  • Housing: Cycoloy with rubber holster (non-flammable, shock-resistant)

• Safety & Compliance:

  • Safety: IEC 61010-1, double/reinforced insulation, overvoltage category CAT III 600 V, Pollution Degree 2

  • Protection: IP 65 enclosure (main housing)

• Electrical Measurement Ranges & Accuracy:

  • Voltage (Wye): 57 V to 480 V; errors: ±(0.2% reading + 5 digits) intrinsic, ±(0.5% + 10 digits) operating

  • Voltage (Delta): up to 830 V

  • Current: Flexible probes up to 3000 A; accuracy ±(0.5% + 10 digits) to ±(1% + 20 digits) depending on range

  • Power: Measures active (P), apparent (S), reactive (Q), distortion (D) power; PF, energy (kWh, kVARh); typical power accuracy ±(0.7% + 15 digits)

  • Frequency: 46–54 Hz and 56–64 Hz

• Fluke 1735 Three-Phase Power Logger Analyst

• Fluke 4-Phase Flexi Set

• Fluke 1735 Voltage Probe

• (4) Fluke Alligator Clips

• 1735 Getting Started Guide

• AC Adapter/Charger

• USB PC Interface Cable

• User Manual

• Carrying Case
