Sign In for Member Pricing Fluke 1736 Three-Phase Power Quality Logger Analyzer
This is a NEW Fluke 1736 Three-Phase Power Quality Logger Analyzer that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke 1736 Three-Phase Power Quality Logger Analyzer
This is a NEW Fluke 1736 Three-Phase Power Quality Logger Analyzer that was tested prior to being listed and is in working condition.

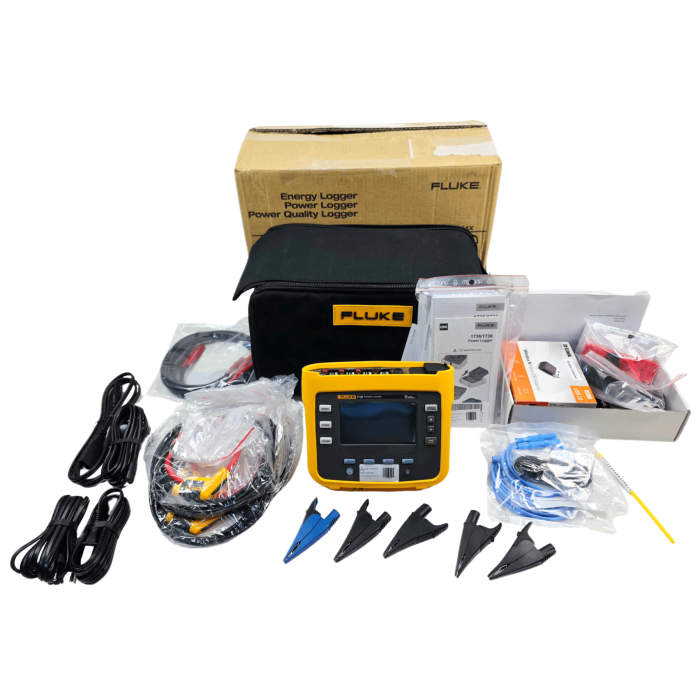

Includes:
- Fluke 1736 Three-Phase Power Quality Logger Analyzer
- (4) Fluke iFlex
- 3 Phase Voltage Lead Cable Assembly
- (4) Test Lead Cable
- (6) Alligator Clips
- AC Adapter/Charger
- (4) Power Cord
- USB Cable
- User Manual On CD-ROM
- Carrying Case
Fluke 1736 Three-Phase Power Quality Logger Analyzer
The Fluke 1736 Three-Phase Power Quality Logger Analyzer is an advanced energy monitoring instrument designed for measuring, recording, and analyzing electrical power systems in industrial, commercial, and utility environments. It is used for load studies, energy audits, power quality assessment, and troubleshooting voltage, current, and power disturbances across three-phase installations.
The analyzer captures power parameters continuously and supports automatic connection verification to reduce setup errors. It records voltage, current, active power, reactive power, energy consumption, harmonics, and event data, allowing technicians and engineers to evaluate system performance and identify efficiency issues.
Key Features
● Three-phase power and energy logging system
● Simultaneous voltage, current, power, and energy measurement
● Automatic connection verification for setup validation
● Records harmonics, events, and power quality parameters
● Energy study and load analysis capability
● Integrated Wi-Fi and USB data transfer support
● Continuous logging for long-duration monitoring
● Suitable for industrial, utility, and facility diagnostics
| Specification | Value |
|---|---|
| Product Type | Three-Phase Power Quality Logger |
| Model | Fluke 1736 |
| Phase Configuration | 1Ø / 3Ø |
| Voltage Measurement Range | Up to 1000 V |
| Current Measurement | Flexible Current Probes Supported |
| Sampling Rate | 10.24 kHz |
| Power Parameters | kW, kVA, kVAR, PF |
| Energy Measurements | kWh, kVAh, kVARh |
| Harmonic Analysis | Up to 50th Harmonic |
| Frequency Range | 50 / 60 Hz |
| Data Storage | Internal Flash Memory |
| Connectivity | Wi-Fi, USB |
| Display Type | Color LCD |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
| Protection Rating | IP65 (with protective enclosure) |
| Power Supply | AC Line Powered |
| Application | Energy Audits & Power Quality Analysis |
Specifications
| Weight | 20 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5480 |
| Model | 1736 |
| Product Condition | New |
What's in the box?
- Fluke 1736 Three-Phase Power Quality Logger Analyzer
- (4) Fluke iFlex
- 3 Phase Voltage Lead Cable Assembly
- (4) Test Lead Cable
- (6) Alligator Clips
- AC Adapter/Charger
- (4) Power Cord
- USB Cable
- User Manual On CD-ROM
- Carrying Case
