Sign In for Member Pricing Fluke 189 II (Series 2) True RMS Digital Multimeter
This is a good condition Fluke 189 II (Series 2) True RMS Digital Multimeter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

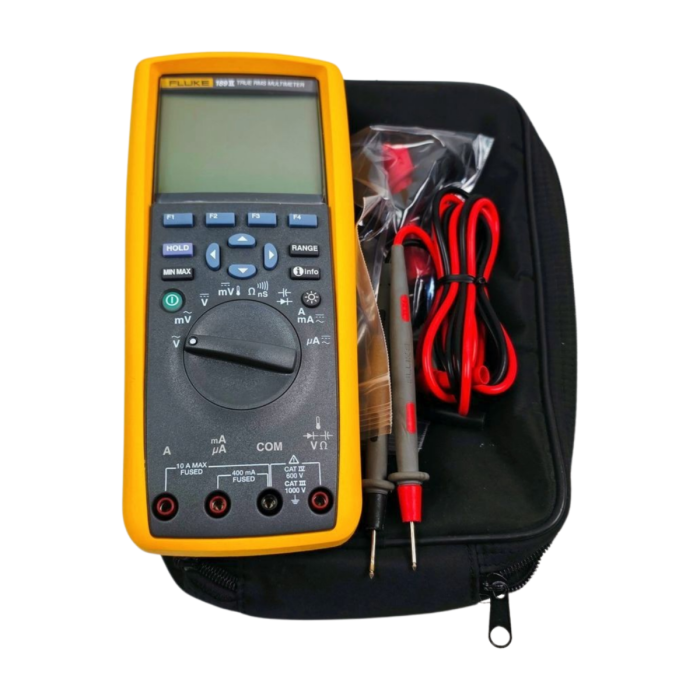

Fluke 189 II (Series 2) True RMS Digital Multimeter
This is a good condition Fluke 189 II (Series 2) True RMS Digital Multimeter that was tested prior to being listed and is in working condition.
Includes:
- Fluke 189 II (Series 2) True RMS Digital Multimeter
- Leads
- Case
Fluke 189 II (Series 2) True RMS Digital Multimeter
The Fluke 189 II (Series 2) True RMS Digital Multimeter is a high-performance logging multimeter designed for advanced electrical diagnostics, troubleshooting, and system analysis. It utilizes True RMS measurement technology to deliver accurate readings on complex and non-linear signals, making it suitable for industrial, automation, and electronic applications.
The device integrates data logging and TrendCapture functionality, allowing users to record and analyze measurement trends over time without requiring external software. With high resolution, fast transient capture, and wide bandwidth capability, it enables precise monitoring of dynamic electrical systems and supports in-depth performance evaluation in demanding environments.
Key Features
● True RMS measurements for accurate analysis of non-linear signals
● High precision with 0.025% basic DC accuracy
● Built-in data logging with TrendCapture graphing
● 50,000-count high-resolution display
● Wide AC bandwidth up to 100 kHz
● Fast peak capture for transient events
● Measures voltage, current, resistance, frequency, and capacitance
● Real-time clock for timestamped data logging
● Designed for industrial and advanced troubleshooting applications
| Specification | Value |
|---|---|
| Product Type | True RMS Digital Logging Multimeter |
| Display Resolution | 50,000 counts |
| DC Voltage Range | Up to 1000 V |
| AC Voltage Range | Up to 1000 V |
| DC Voltage Accuracy | ±0.025% |
| AC Voltage Accuracy | ±0.4% |
| DC Current Range | Up to 10 A (20 A for 30 sec) |
| AC Current Range | Up to 10 A |
| Resistance Range | Up to 500 MΩ |
| Capacitance Range | 0.01 nF to 50,000 µF |
| Frequency Range | 0.5 Hz to 1 MHz |
| Temperature Range | -200°C to 1370°C |
| AC Bandwidth | Up to 100 kHz |
| Peak Capture | 250 µs |
| Logging Capability | Internal logging with TrendCapture |
| Memory Capacity | Up to ~995 logged readings |
| Safety Rating | CAT IV 600 V / CAT III 1000 V |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5435 |
| Model | 189 |
| Product Condition | Used |
What's in the box?
- Fluke 189 II (Series 2) True RMS Digital Multimeter
- Leads
- Case
