Sign In for Member Pricing Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope
This is an excellent condition Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

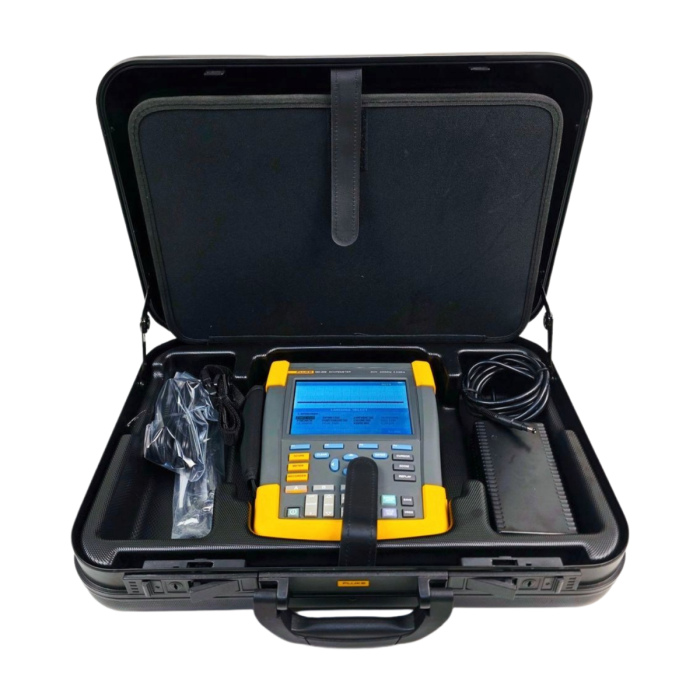

Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope
This is an excellent condition Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope that was tested prior to being listed and is in working condition.
Includes:
- Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope
- (2) 10:1 250 MHz Voltage Probe Sets
- (2) 1000V Hard Point Test Leads
- AC Adapter/Charger
- USB PC Interface Cable
- User Manual
- CD
- Carrying Case
The Fluke 190-202 Series II ScopeMeter is a high-performance handheld oscilloscope designed for advanced electrical troubleshooting in industrial environments. It combines the capabilities of a digital oscilloscope and a multimeter into a rugged portable device, enabling accurate analysis of electrical signals, transients, and system behavior in the field.
The instrument features fully isolated inputs for safe measurements in high-energy environments and uses high-speed sampling technology to capture fast signal variations and intermittent faults. With advanced triggering, waveform analysis, and recording functions, it is ideal for diagnosing complex electrical and electronic systems in maintenance, automation, and power applications.
Key Features
● 200 MHz bandwidth for high-speed signal analysis
● Dual independent isolated input channels for safe measurements
● High real-time sampling rate for capturing transient events
● Integrated digital multimeter functionality
● Advanced triggering modes including Connect-and-View™ auto triggering
● ScopeRecord mode for long-duration waveform recording
● TrendPlot for monitoring signal trends over time
● Designed for industrial field diagnostics and maintenance
| Specification | Value |
|---|---|
| Product Type | Handheld Digital Oscilloscope (ScopeMeter) |
| Bandwidth | 200 MHz |
| Channels | 2 |
| Real-Time Sampling Rate | 2.5 GS/s |
| Input Sensitivity | 2 mV/div to 100 V/div |
| Timebase Range | 2 ns/div to 2 min/div |
| Input Type | Fully Isolated Floating Inputs |
| Isolation Rating | CAT III 1000 V / CAT IV 600 V |
| Maximum Input Voltage | 1000 V (CAT III) |
| Trigger Modes | Edge, Pulse Width, Video, Single Shot |
| Auto Trigger | Connect-and-View™ |
| Glitch Capture | 8 ns (Fluke) |
| Record Length | 10,000 pts per channel |
| ScopeRecord Length | Up to 30,000 pts |
| Measurements | 30 Automatic + Cursor Measurements |
| Multimeter Function | Integrated DMM Input |
| Waveform Compare | Pass/Fail Testing |
| Application | Industrial Troubleshooting & Signal Analysis |
Specifications
| Weight | 20 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5429 |
| Model | 190-202 |
| Product Condition | Used |
What's in the box?
- Fluke 190-202 Series II Scopemeter 2 Channel 200MHz Oscilloscope
- (2) 10:1 250 MHz Voltage Probe Sets
- (2) 1000V Hard Point Test Leads
- AC Adapter/Charger
- USB PC Interface Cable
- User Manual
- CD
- Carrying Case
