Sign In for Member Pricing Fluke 712 RTD Calibrator
This is a used condition Fluke 712 RTD Calibrator, shows normal signs of use, wear and tear that was tested prior to being listed and is in working condition. Shows signs of use, inside of hard case shows some writing.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

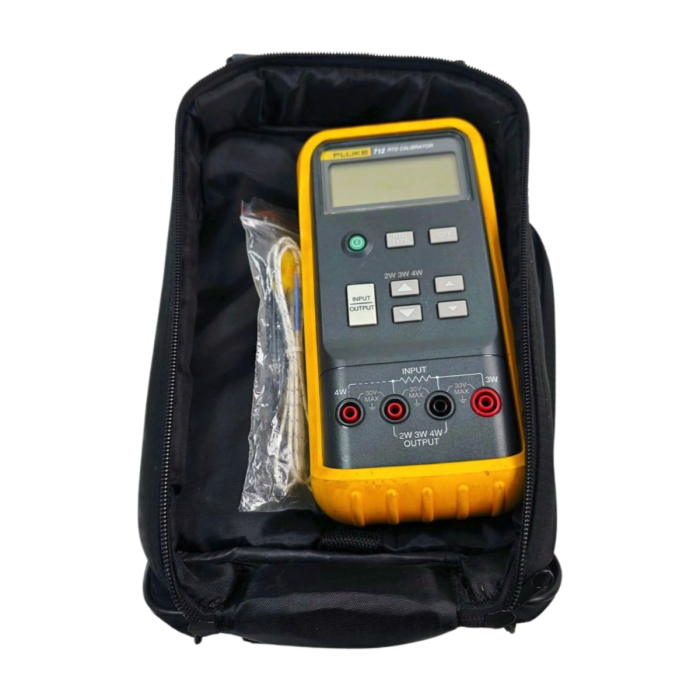

Fluke 712 RTD Calibrator
This is a used condition Fluke 712 RTD Calibrator, shows normal signs of use, wear and tear that was tested prior to being listed and is in working condition. Shows signs of use, inside of hard case shows some writing.
Includes:
- Fluke 712 RTD Calibrator ONLY
- Case
Fluke 712 RTD Calibrator
The Fluke 712 RTD Calibrator is a precision handheld temperature calibration instrument designed for testing and simulating resistance temperature detectors (RTDs). It enables technicians to measure and source temperature signals and resistance values with high accuracy, making it suitable for calibration, maintenance, and troubleshooting of temperature transmitters and control systems.
The device supports multiple RTD types and provides simultaneous measurement of 4–20 mA signals while sourcing temperature, allowing efficient loop testing and calibration. It incorporates advanced calibration functions such as linear ramping and step testing to simplify verification processes in industrial and process environments
Key Features
● Measures and simulates 13 different RTD types and resistance values
● Simultaneous 4–20 mA measurement while sourcing temperature signals
● High accuracy RTD temperature calibration capability
● Configurable 0% and 100% output for quick linearity checks
● Linear ramp and 25% step auto ramp functions
● Dual input with backlit display for easy readings
● Memory retention for quick restart of previous settings
● Designed for industrial temperature calibration and loop testing
| Specification | Value |
|---|---|
| Product Type | RTD Temperature Calibrator |
| RTD Types Supported | 13 Types (Pt, Ni, Cu, YSI) |
| Temperature Range (RTD) | -200°C to 800°C (depending on type) |
| Temperature Resolution | 0.1°C |
| RTD Accuracy (Pt100) | ±0.015% + 0.18°C |
| Resistance Measurement Range | 0 Ω to 4000 Ω |
| Resistance Accuracy | ±0.015% + 0.05 Ω |
| Resistance Source Range | 1 Ω to 4000 Ω |
| mA Measurement Range | 0 to 24 mA |
| mA Accuracy | ±0.010% + 2 µA |
| Excitation Current | 0.05 mA to 3 mA |
| Max Input Voltage | 30 V |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Humidity | Up to 90% RH (non-condensing) |
| IP Rating | IP52 |
| Power Supply | 4 × AA Batteries |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5436 |
| Model | 712 RTD |
| Product Condition | Used |
What's in the box?
- Fluke 712B RTD Calibrator ONLY
- Case
