Sign In for Member Pricing Fluke 715 Volt/mA Loop Calibrator

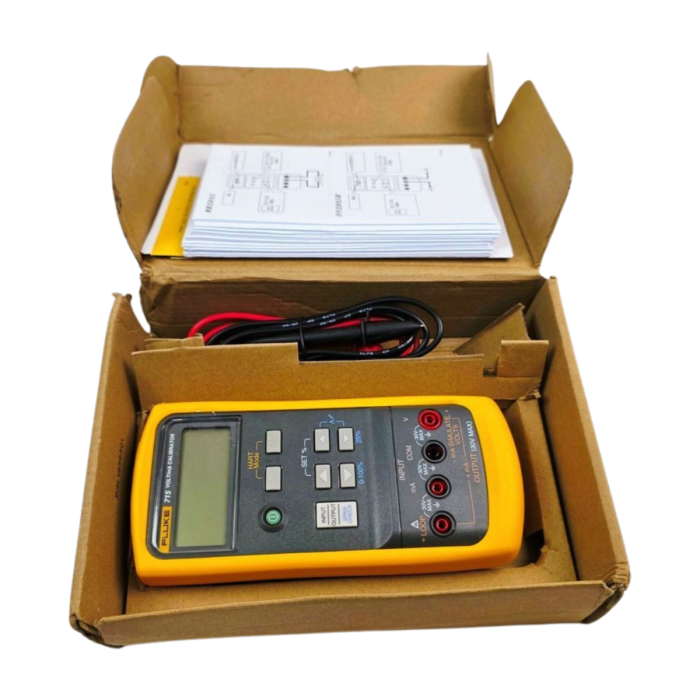

This is an excellen like NEW condition Fluke 715 Volt/mA Loop Calibrator that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke 715 Volt/mA Loop Calibrator
This is an excellen like NEW condition Fluke 715 Volt/mA Loop Calibrator that was tested prior to being listed and is in working condition.
Includes:
- Original box
- Fluke 715 Volt/mA Loop Calibrator
- Manual
- Leads
Fluke 715 Volt/mA Loop Calibrator
The Fluke 715 Volt/mA Loop Calibrator is a precision process calibration instrument designed for testing, measuring, and simulating current loops and voltage signals in industrial control systems. It is widely used for calibrating transmitters, PLCs, and process instruments by providing accurate sourcing and measurement of 4–20 mA signals and voltage outputs.
The device integrates high-accuracy measurement technology with loop power capability, allowing technicians to power transmitters and simultaneously measure loop current. It supports simulation, sourcing, and ramp functions, making it suitable for calibration, maintenance, and troubleshooting in process industries and automation systems.
Key Features
● Measures and sources 4–20 mA loop signals with high accuracy
● Voltage measurement and sourcing capability for process signals
● 24 V loop power supply for transmitter testing
● High precision with 0.01% accuracy and 1 µA resolution
● Simulate, source, and measure modes in a single device
● Step and linear ramp output for calibration testing
● Configurable zero and span settings for quick adjustments
● Suitable for PLCs, transmitters, and industrial process control
| Specification | Value |
|---|---|
| Product Type | Volt/mA Loop Calibrator |
| mA Measurement Range | 0 to 24 mA (-25% to 125%) |
| mA Resolution | 0.001 mA |
| mA Accuracy | ±0.01% + 2 counts |
| Voltage Range (mV) | 0 to 200 mV |
| Voltage Resolution (mV) | 0.01 mV |
| Voltage Accuracy (mV) | ±0.015% + 2 counts |
| Voltage Range (V) | 0 to 20 V |
| Voltage Resolution (V) | 0.001 V |
| Voltage Accuracy (V) | ±0.01% + 2 counts |
| Loop Power Supply | 24 V DC |
| Loop Drive Capability | 20 mA into 1000 Ω |
| Output Modes | Source / Simulate / Measure |
| Ramp Functions | Step & Linear Ramp |
| Display | 5-digit LCD |
| Operating Temperature | -10°C to 55°C |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5434 |
| Model | 715 |
| Product Condition | Used |
What's in the box?
- Original box
- Fluke 715 Volt/mA Loop Calibrator
- Manual
- Leads
