Sign In for Member Pricing Fluke 717 3000G Pressure Calibrator 0-3000 PSI With NIST Traceable Calibration
This is a NEW open box Fluke 717 3000G Pressure Calibrator 0-3000 PSI With NIST Traceable Calibration that is tested and working.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke 717 3000G Pressure Calibrator 0-3000 PSI With NIST Traceable Calibration
This is a NEW open box Fluke 717 3000G Pressure Calibrator 0-3000 PSI With NIST Traceable Calibration that is tested and working.
Inludes:
- Fluke 717 3000G Pressure Calibrator
- Manual
- Box
- Leads
Fluke 717 3000G Pressure Calibrator (0–3000 PSI, NIST Traceable Calibration)
The Fluke 717 3000G Pressure Calibrator is a precision instrument designed for high-pressure measurement, calibration, and testing in industrial process applications. With a pressure range up to 3000 PSI (207 bar), it delivers exceptional accuracy and reliability for technicians working in process industries, oil & gas, and power generation.
Built with Fluke’s renowned ruggedness and user-friendly design, the 717 3000G enables both pressure measurement and loop current testing, making it a versatile all-in-one solution. The unit is compact, lightweight, and engineered to withstand demanding field environments while maintaining top-tier calibration performance.
Each unit comes NIST traceable calibrated, ensuring certified accuracy for professional-grade use in both lab and field applications.
Key Features
-
Pressure measurement range up to 3000 PSI (207 bar)
-
High accuracy: ±0.05% of full scale
-
Simultaneous pressure and mA measurement for transmitter testing
-
Built-in 24 V loop power supply for powering transmitters
-
Compatible with a wide range of pressure modules for flexibility
-
Compact, lightweight, and durable design for field use
-
Easy-to-read backlit display
-
NIST traceable calibration ensures certified accuracy
| Parameter | Description |
|---|---|
| Pressure Range | 0 to 3000 PSI (0 to 207 bar) |
| Pressure Units | psi, bar, kPa, kg/cm², inH₂O, mmHg |
| Accuracy | ±0.05% of full scale |
| mA Measurement Range | 0 to 24 mA |
| mA Source Range | 0 to 20 mA or 4 to 20 mA |
| Loop Power Supply | 24 V DC |
| Display Type | Backlit digital LCD |
| Resolution | 0.01% of range |
| Pressure Connection | 1/8 inch NPT female |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temperature | -30 °C to +60 °C |
| Power Supply | 9 V battery |
| Battery Life | 30 hours typical |
| Dimensions (H × W × D) | 187 × 87 × 41 mm |
| Weight | 700 g (approx.) |
| Calibration Certification | NIST Traceable |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5330 |
| Model | 717 3000G |
| Product Condition | New |

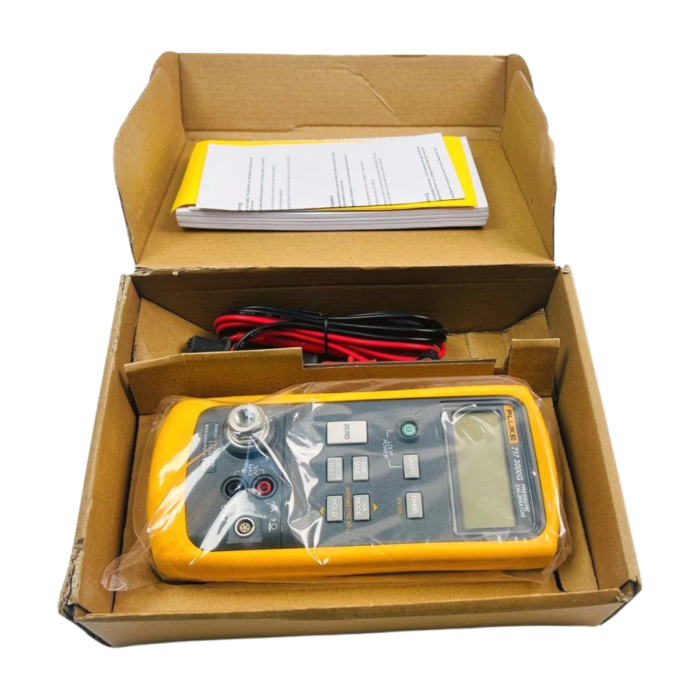

What's in the box?
- Fluke 717 3000G Pressure Calibrator
- Manual
- Box
- Leads
