Sign In for Member Pricing Fluke 725 Multifunction Process Calibrator W / Leads
This is an excellent condition like NEW Fluke 725 Multifunction Process Calibrator W / Leads that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

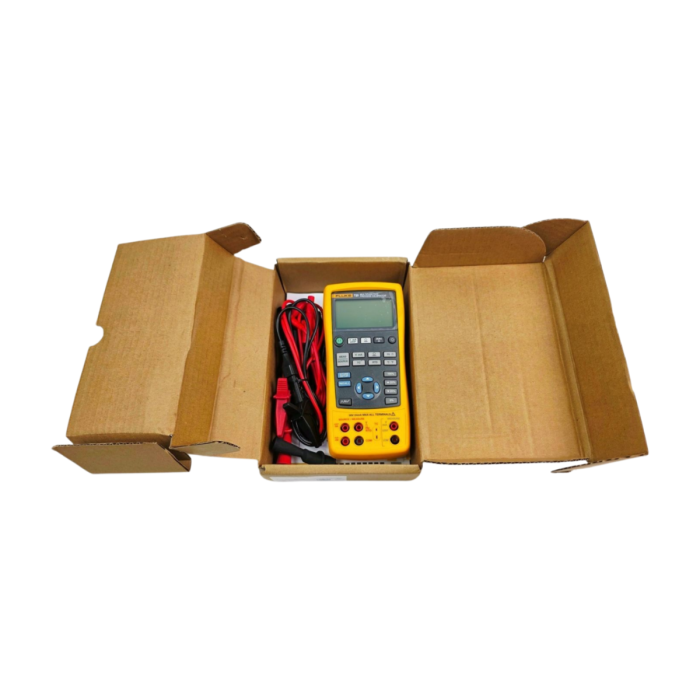

Fluke 725 Multifunction Process Calibrator W / Leads
This is an excellent condition like NEW Fluke 725 Multifunction Process Calibrator W / Leads that was tested prior to being listed and is in working condition.
Includes:
- Box
- Fluke 725 Multifunction Process Calibrator
- (2) 1000V Hard Point Test Leads
- (2) Banana To Alligator Clip Cables
- User Manual
Fluke 725 Multifunction Process Calibrator W / Leads
The Fluke 725 Multifunction Process Calibrator is a versatile field calibration instrument designed to measure and source a wide range of process parameters used in industrial control systems. It enables technicians to test and calibrate transmitters, sensors, and control loops by handling electrical, temperature, frequency, and pressure signals within a single device.
The calibrator integrates dual-channel measurement and sourcing capability, allowing simultaneous input and output testing for efficient loop diagnostics. With support for RTDs, thermocouples, mA, voltage, resistance, and frequency, it provides a comprehensive solution for process calibration and maintenance in industrial environments.
Key Features
● Measures and sources mA, voltage, resistance, frequency, and temperature signals
● Supports RTDs and thermocouples for temperature calibration
● Simultaneous source and measure capability for loop testing
● Built-in 24 V loop power for transmitter operation
● Auto step and ramp functions for calibration testing
● Dual display for input and output monitoring
● Compatible with external pressure modules for pressure calibration
● Designed for industrial process calibration and maintenance
| Specification | Value |
|---|---|
| Product Type | Multifunction Process Calibrator |
| DC Voltage Range | 0 to 30 V |
| DC Voltage Accuracy | ±0.02% + 2 counts |
| mA Measurement Range | 0 to 24 mA |
| mA Accuracy | ±0.02% + 2 counts |
| Resistance Range | 0 to 3200 Ω |
| Resistance Accuracy | ±0.1 Ω (typical low range) |
| Frequency Range | 1 Hz to 10 kHz |
| Frequency Accuracy | ±0.05% + 1 count |
| RTD Types Supported | Pt100, Pt1000, Ni120, Cu10 |
| Thermocouple Types | J, K, T, E, R, S, B, N |
| Temperature Range (RTD) | -200°C to 800°C (type dependent) |
| Temperature Range (TC) | -200°C to 1800°C (type dependent) |
| Loop Power Supply | 24 V DC |
| Pressure Measurement | Via optional 750P modules (±0.025% of range) |
| Output Modes | Source / Simulate / Measure |
| Display | Dual LCD |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5433 |
| Model | 725 |
| Product Condition | Used |
What's in the box?
- Box
- Fluke 725 Multifunction Process Calibrator
- (2) 1000V Hard Point Test Leads
- (2) Banana To Alligator Clip Cables
- User Manual
