Sign In for Member Pricing Fluke 726 Multifunction Process Calibrator
This is a good condition Fluke 726 Multifunction Process Calibrator that was tested prior to being listed and is in working condition. Has marker on the side of the unit and the case as well.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

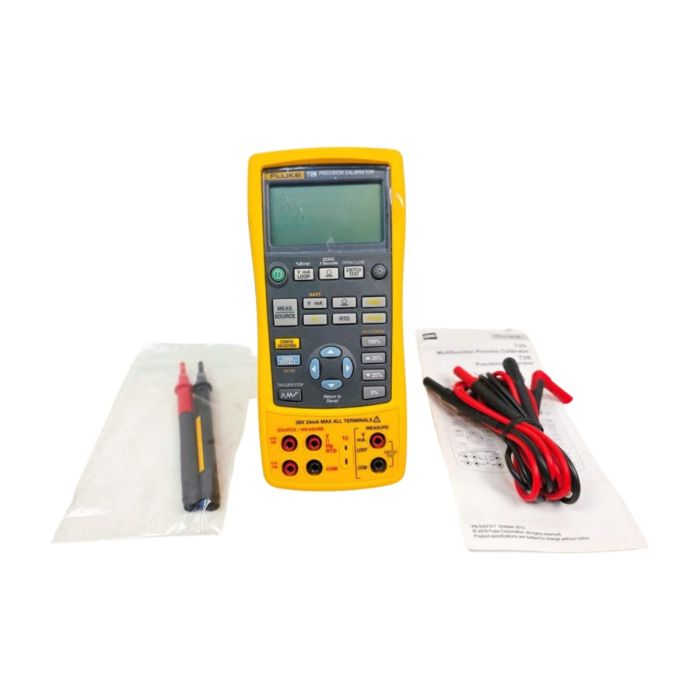

Fluke 726 Multifunction Process Calibrator
This is a good condition Fluke 726 Multifunction Process Calibrator that was tested prior to being listed and is in working condition. Has marker on the side of the unit and the case as well.
Inlcudes:
- Fluke 726 Precision Multifunction Process Calibrator (Has Marker on the side)
- Test Leads
- User Manual
- Carrying Case (Has writing on it)
Fluke 726 Multifunction Process Calibrator
The Fluke 726 Multifunction Process Calibrator is a high-precision handheld calibration instrument designed for process technicians, instrumentation engineers, and industrial maintenance professionals. Built for calibration, troubleshooting, and maintenance of process control systems, it provides advanced measurement and sourcing capabilities in a single portable device.
Engineered for demanding industrial environments, the Fluke 726 can measure, source, and simulate multiple process signals, including voltage, current, resistance, frequency, temperature, and pressure (when used with compatible pressure modules). Dual-channel operation allows technicians to view input and output signals simultaneously, significantly improving calibration efficiency in the field.
With features such as auto-step, auto-ramp testing, transmitter loop power, and built-in error calculation, the calibrator simplifies transmitter verification, valve testing, and flowmeter calibration. Its rugged handheld construction and intuitive interface make it ideal for plant maintenance, oil & gas, utilities, and manufacturing applications.
Key Features
-
Multifunction process calibrator for industrial instrumentation
-
Measures, sources, and simulates voltage, current, resistance, frequency, and temperature
-
Compatible with Fluke 750P pressure modules for pressure calibration
-
Dual-channel display for simultaneous input and output measurement
-
24 V loop power supply for transmitter testing
-
Auto-step and auto-ramp functions for fast linearity testing
-
Calculates transmitter error percentage automatically
-
Switch testing for set, reset, and deadband measurement
-
Frequency pulse train and totalizer for flowmeter calibration
-
Stores frequently used test setups for faster operation
-
Rugged handheld design for field calibration work
-
Backlit display for low-light environments
| Specification | Details |
|---|---|
| Model | Fluke 726 |
| Device Type | Multifunction Process Calibrator |
| Measurement Functions | Voltage, Current, Resistance, Frequency, Temperature, Pressure* |
| Voltage Measurement | Up to 30 V DC |
| Current Measurement | Up to 24 mA |
| Resistance Range | 0 – 4000 Ω |
| Frequency Range | 1 Hz – 15 kHz |
| Temperature Inputs | Thermocouples & RTDs |
| Pressure Capability | Via external Fluke 750P Pressure Modules |
| Loop Power | 24 V DC transmitter supply |
| Accuracy | Up to 0.01% reading accuracy |
| Display | Dual backlit digital display |
| Interfaces | Test lead terminals & pressure module port |
| Power Source | 4 × AA alkaline batteries |
| Operating Temperature | −10°C to +55°C |
| Dimensions | 200 × 96 × 47 mm |
| Weight | Approx. 650 g |
| Application | Process calibration, transmitter testing, industrial maintenance |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5400 |
| Model | 726 |
| Product Condition | Used |
What's in the box?
- Fluke 726 Precision Multifunction Process Calibrator (Has Marker on the side)
- Test Leads
- User Manual
- Carrying Case (Has writing on it)
