Sign In for Member Pricing Fluke 726 Multifunction Process Precision Calibrator NEW

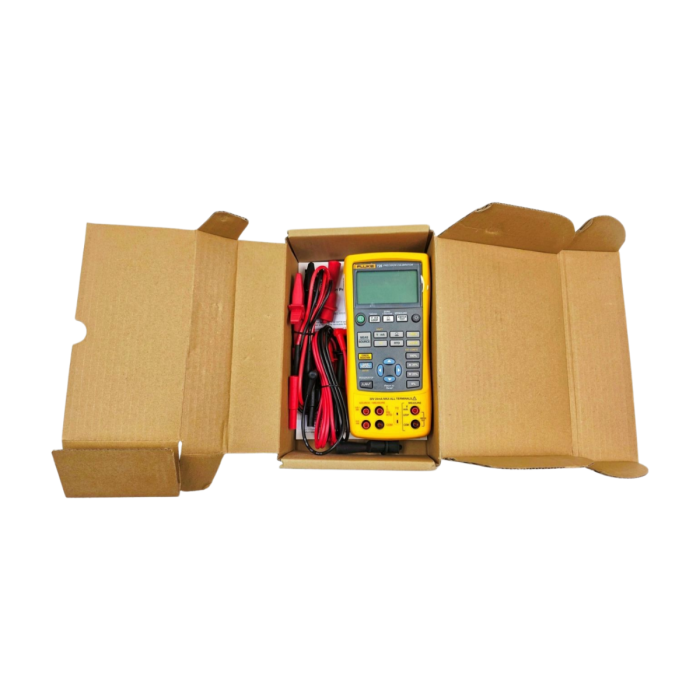

This is a NEW open box Fluke 726 Multifunction Process Precision Calibrator that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke 726 Multifunction Process Precision Calibrator NEW
This is a NEW open box Fluke 726 Multifunction Process Precision Calibrator NEW that was tested prior to being listed and is in working condition.
Includes:
- Fluke 726 Precision Multifunction Process Calibrator
- (2) 1000V Hard Point Test Leads
- User Manual
- Original Box
Fluke 726 Multifunction Process Precision Calibrator NEW
The Fluke 726 Multifunction Process Precision Calibrator is a high-accuracy field instrument designed for calibration, testing, and troubleshooting of process control systems. It is widely used in industrial environments to measure and source multiple parameters including voltage, current, temperature, frequency, and resistance, making it a complete solution for instrumentation engineers and technicians.
It provides simultaneous measurement and sourcing capabilities with dual-channel operation, allowing efficient calibration of transmitters, sensors, and control devices. The device is engineered for precision and versatility, supporting thermocouples, RTDs, pressure modules, and frequency signals while offering advanced functions such as automatic step/ramp testing and loop power supply for real-world process applications.
Key Features
● Measures and sources voltage, current, resistance, frequency, RTD, and thermocouple signals
● High accuracy up to 0.01% for precise calibration tasks
● Dual-channel operation for simultaneous measure and source functionality
● Built-in 24 V loop power supply for transmitter testing
● Supports thermocouple and RTD calibration with custom probe settings
● Automatic step and ramp functions for fast linearity testing
● Stores up to 8 calibration setups and results
● Frequency pulse and totalizer mode for flowmeter testing
● Pressure measurement support via external 750P pressure modules
● Backlit display for clear visibility in low-light environments
● Calculates transmitter error percentage automatically
● Designed for process industries including oil & gas, power, and manufacturing
| Parameter | Details |
|---|---|
| DC Voltage Measurement | -10 V to 30 V |
| DC Voltage Accuracy | ±0.01% + 2 mV |
| DC Current Measurement | 0 – 24 mA |
| DC Current Accuracy | ±0.01% + 2 µA |
| Resistance Range | 0 – 4000 Ω |
| Resistance Accuracy | ±0.015% |
| Frequency Range | 1 Hz – 15 kHz |
| Frequency Accuracy | ±0.05% |
| Thermocouple Types | B, E, J, K, N, R, S, T |
| RTD Types | Pt100, Pt200, Pt500, Pt1000 |
| Loop Power Supply | 24 V DC |
| Data Storage | Up to 8 results |
| Display Type | Backlit LCD |
| Operating Temperature | -10 to 55 °C |
| Application | Process calibration & instrumentation testing |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5446 |
| Model | 726 |
| Product Condition | New |
What's in the box?
- Fluke 726 Precision Multifunction Process Calibrator
- (2) 1000V Hard Point Test Leads
- User Manual
- Original Box
