Sign In for Member Pricing Fluke 754 Documenting Process Calibrator HARTT
This is a good condition Fluke 754 Documenting Process Calibrator HART that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

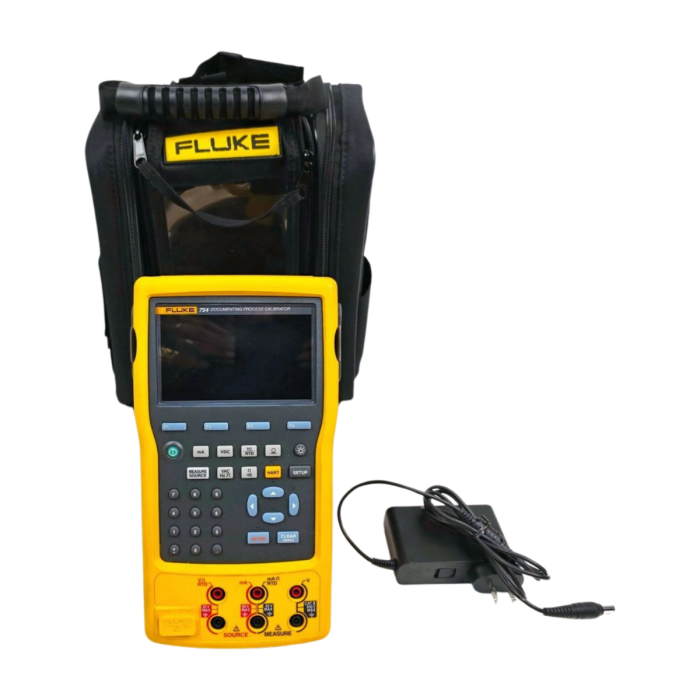

Fluke 754 Documenting Process Calibrator HART
This is a good condition Fluke 754 Documenting Process Calibrator HART that was tested prior to being listed and is in working condition.
Includes:
- Fluke 754 Documenting Process Calibrator
- AC Adapter/Charger
- Carrying Case
Fluke 754 Documenting Process Calibrator HART
The Fluke 754 Documenting Process Calibrator is an advanced multifunction calibration instrument designed for process industry professionals to calibrate, troubleshoot, and maintain instrumentation systems. It integrates full HART communication capabilities, allowing users to configure, calibrate, and diagnose smart transmitters without the need for a separate communicator.
It combines sourcing, simulation, and measurement of electrical, temperature, and pressure signals in a single handheld device. The built-in documentation system enables automated calibration procedures and data logging, helping organizations maintain compliance with industrial standards while improving efficiency and reducing manual errors in calibration workflows.
Key Features
● Integrated HART communication for calibration and configuration of smart transmitters
● Measures, sources, and simulates voltage, current, resistance, frequency, temperature, and pressure
● Automated calibration procedures with as-found and as-left documentation
● Dual display for simultaneous measurement and source readings
● Built-in 24–26 V loop power supply for transmitter testing
● Compatible with 29+ pressure modules for extended pressure calibration
● Data storage for up to one week of calibration procedures and results
● Auto step and ramp functions for linearity and loop testing
● Supports RTD and thermocouple calibration with multiple sensor types
● USB connectivity for data transfer and calibration management software integration
● Handles fast pulsed signals down to ~1 ms for PLC testing
● Designed for ISO, FDA, EPA, and OSHA compliance workflows
| Parameter | Details |
|---|---|
| DC Voltage Measurement | 0 – 300 V |
| DC Voltage Accuracy | ±0.02% + 0.0005 V |
| AC Voltage Range | 0 – 300 V (40–500 Hz) |
| AC Voltage Accuracy | ±0.5% + 0.002 V |
| DC Current Range | 0 – 110 mA |
| DC Current Accuracy | ±0.01% + 5 µA |
| Resistance Range | 0 – 10 kΩ |
| Resistance Accuracy | ±0.05% |
| Frequency Range | 1 Hz – 50 kHz |
| Loop Power Supply | 24 – 26 V DC |
| Data Storage Capacity | Up to 8000 readings |
| Measurement Rate | 1 – 60 readings/min |
| Battery Type | Li-ion (7.2 V, 4400 mAh) |
| Battery Life | ~8–10 hours |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -20 to 60 °C |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5448 |
| Model | 754 |
| Product Condition | Used |
What's in the box?
- Fluke 754 Documenting Process Calibrator
- AC Adapter/Charger
- Carrying Case
