Sign In for Member Pricing Fluke 773 Milliamp process clamp meter
This is an excellent condition like NEW Fluke 773 Milliamp process clamp meter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

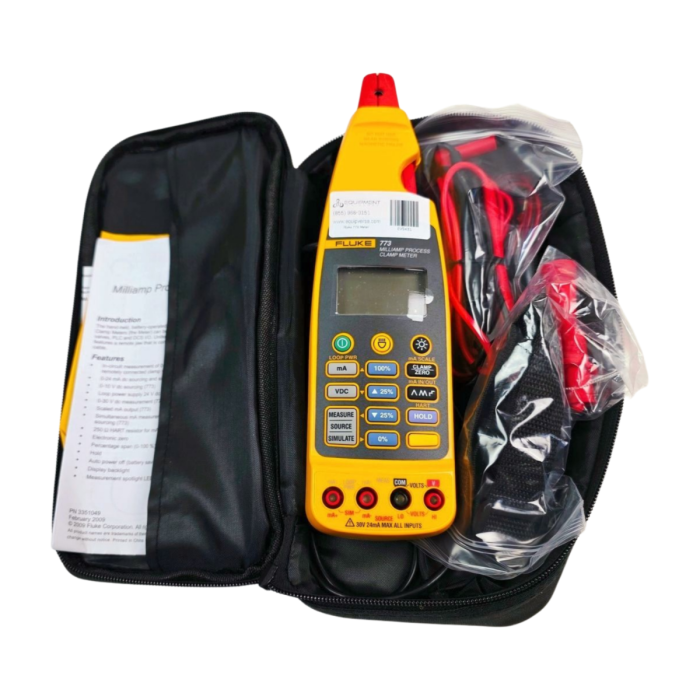

Fluke 773 Milliamp process clamp meter
This is an excellent condition like NEW Fluke 773 Milliamp process clamp meter that was tested prior to being listed and is in working condition.
Includes:
- Fluke 773 Milliamp process clamp meter
- Case
- Leads
- Manual
The Fluke 773 Milliamp Process Clamp Meter is a specialized process troubleshooting tool designed for measuring, sourcing, and simulating 4–20 mA signals without breaking the loop. It allows technicians to diagnose live control systems without shutting them down, significantly improving efficiency and reducing downtime in industrial environments.
The device combines clamp-based non-contact current measurement with full loop calibrator functionality, enabling users to test transmitters, valves, and PLC systems. It supports both traditional in-series measurement and non-invasive detection, making it ideal for process control, instrumentation, and maintenance applications.
Key Features
● Non-contact measurement of 4–20 mA signals without breaking the loop
● Measures up to 99.9 mA using clamp technology
● Sources and simulates mA signals for loop testing
● Built-in 24 V loop power for transmitter operation
● Measures DC voltage for additional diagnostics
● Simultaneous measurement and output capability
● Faster troubleshooting compared to traditional multimeters
● Designed for PLCs, transmitters, and process control systems
| Specification | Value |
|---|---|
| Product Type | Milliamp Process Clamp Meter |
| mA Measurement Range (Clamp) | 0.01 mA to 99.9 mA |
| mA Accuracy (Clamp) | ±1% of reading + 5 digits |
| mA Measurement Range (Series) | 0 to 24 mA |
| mA Accuracy (Series) | ±0.2% + 2 counts |
| mA Resolution | 0.01 mA |
| mA Source Range | 0 to 24 mA |
| mA Source Accuracy | ±0.2% |
| Loop Power Supply | 24 V DC |
| Loop Drive Capability | 20 mA into 1000 Ω |
| DC Voltage Measurement | 0 to 30 V |
| Voltage Accuracy | ±0.05% + 2 counts |
| Clamp Jaw Opening | ~5 mm |
| Measurement Method | Non-contact (Clamp) + In-series |
| Application | Process Control & Instrumentation Testing |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5431 |
| Model | 773 |
| Product Condition | Used |
What's in the box?
- Fluke 773 Milliamp process clamp meter
- Case
- Leads
- Manual
