Sign In for Member Pricing Fluke 789 Process Meter Digital Multimeter w/ Leads
This is a used good condition Fluke 789 Process Meter Digital Multimeter w/ Leads that was tested prior to being listed and is in working condition. There is some writing on the side of the unit.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

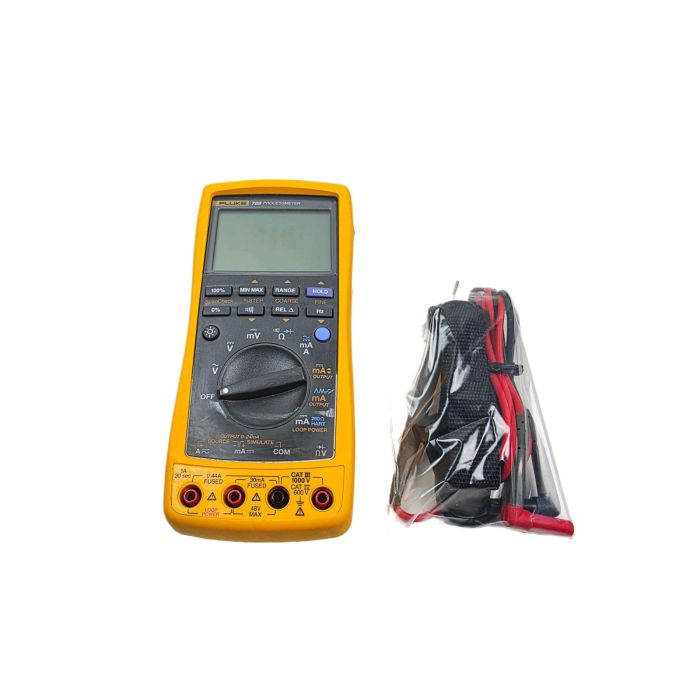

Fluke 789 Process Meter Digital Multimeter w/ Leads
This is a used good condition Fluke 789 Process Meter Digital Multimeter w/ Leads that was tested prior to being listed and is in working condition. There is some writing on the side of the unit.
Includes:
- Fluke 789 ProcessMeter Digital Multimeter
- Leads
Fluke 789 Process Meter Digital Multimeter w/ Leads
The Fluke 789 ProcessMeter is a professional handheld instrument that combines the functionality of a True-RMS digital multimeter with a loop calibrator in a single device. Designed for industrial process control and instrumentation applications, it enables technicians to troubleshoot, calibrate, and maintain transmitters, sensors, PLCs, and process control loops efficiently.
Featuring a built-in 24 V loop power supply, the ProcessMeter can source, simulate, and measure 4–20 mA signals while also performing comprehensive electrical measurements. Its rugged construction and multifunction capability make it ideal for field service, maintenance, and commissioning tasks in industrial environments.
Key Features
● Combines digital multimeter and loop calibrator in one instrument
● Measures, sources, and simulates 4–20 mA process signals
● Built-in 24 V loop power supply for transmitter testing
● True-RMS AC voltage measurement for accurate readings
● HART® mode with integrated 250 Ω loop resistor
● Auto-step and auto-ramp output functions
● Large dual display with backlight for easy viewing
● Designed for industrial process calibration and electrical troubleshooting
| Specification | Value |
|---|---|
| Model | Fluke 789 |
| Product Type | Process Meter / Digital Multimeter |
| AC Voltage | 1000 V |
| DC Voltage | 1000 V |
| AC Current | 1 A |
| DC Current | 1 A |
| Process Current Measure | 0–30 mA |
| Process Current Source | 0–24 mA |
| Loop Power Supply | 24 V DC |
| HART Loop Resistor | 250 Ω |
| Resistance | 40 MΩ |
| Frequency | 20 kHz |
| Continuity Test | Yes |
| Diode Test | Yes |
| Display Count | 4000 |
| True-RMS | Yes |
| Safety Rating | CAT III 1000 V |
| Safety Rating | CAT IV 600 V |
| Power Supply | 4 × AA Batteries |
| Battery Life | Up to 140 Hours |
| Weight | Approx. 610 g |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5520 |
| Model | 789 |
| Product Condition | Used |
What's in the box?
- Fluke 789 ProcessMeter Digital Multimeter
- Leads
