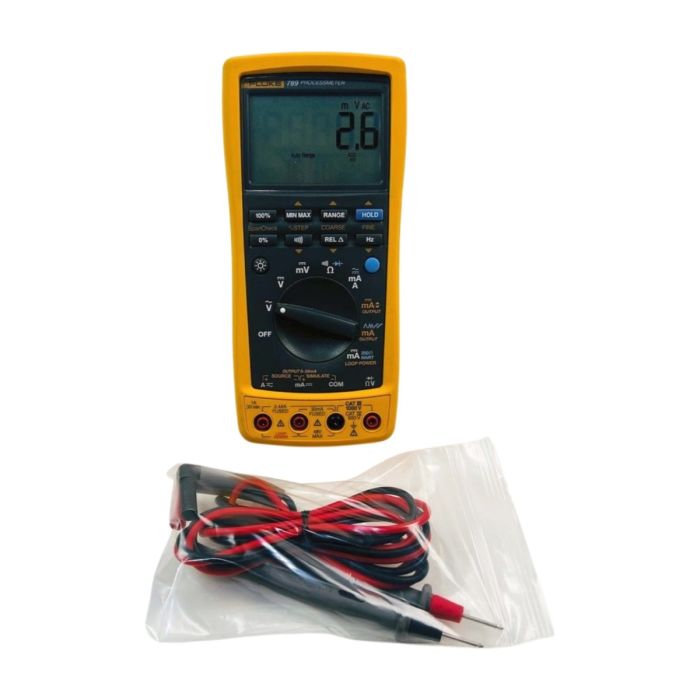

Fluke 789 Process Meter With Leads Excellent Condition

Fluke 789 Process Meter With Leads Excellent Condition

This is a Excellent condition Fluke 789 Process Meter With Leads that is tested and working.

Includes:

• Fluke 789 Process Meter
• Leads

Fluke 789 ProcessMeter™ — The Ultimate Loop Calibration Multimeter

Troubleshoot. Calibrate. Log.  A powerhouse handheld tool that combines a precision loop calibrator with a safety-rated digital multimeter.

Overview

• The Fluke 789 merges the capabilities of a full-featured mA loop calibrator with a rugged digital multimeter in one compact, efficient tool.

• It includes a built-in 24 V loop power supply, eliminating the need to carry separate external power.

• Features a selectable 250 ohm HART® resistor—no separate resistor required for HART communicator setups.

Key Features

• Dual-function tool: Digital multimeter with CAT III 1000 V / CAT IV 600 V safety ratings, plus loop calibrator capabilities.

• Large dual display: Backlit with two brightness levels for improved clarity in all lighting conditions.

• Loop calibration: Source, simulate, and measure 0–20 mA or 4–20 mA, with manual (100%, 25%, Coarse, Fine) and auto Step/Ramp adjustments.

• Precision measurements: DC voltage accurate to 0.1%, DC current to 0.05%, frequency up to 20 kHz, resistance, diode testing, continuity beeper, Min/Max/Average/Hold/Relative modes.

• High drive capability: Supports up to 1200 Ω load at 20 mA. Span-check buttons toggle between 0% and 100% (4 mA / 20 mA) with simultaneous mA and % of scale display.

• External access: Batteries and fuses are user-replaceable. Infrared I/O compatible with FlukeView® Forms software.

Technical Specifications

Ranges & Accuracy

• DC Voltage: up to 1000 V (0.1% + 1 digit)

• AC Voltage (true-RMS): up to 1000 V (0.7% + 2 digits)

• DC Current: up to 30 mA (0.05% + 2 digits)

• AC/DC Current: up to 1 A (0.2% + 2 digits)

• Frequency: up to 19.999 kHz (0.005% + 1 digit)

• Resistance: up to 40 MΩ (0.2% + 1 digit)

• Diode test: displays voltage drop, continuity beeper for <100 Ω

• Fluke 789 Process Meter
• Leads
