Sign In for Member Pricing Fluke 789 Processmeter Handheld Multimeter
$827.00
In stock
SKU
EV5507
Model:
789 Process Meter
Product Condition:
New
Log in for member pricing
This is a NEW Fluke 789 Processmeter Handheld Multimeter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

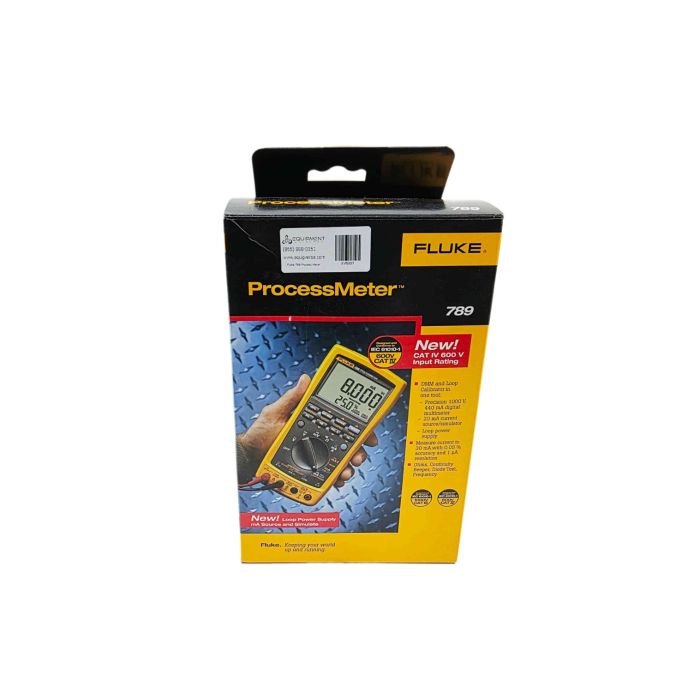

Fluke 789 Processmeter Handheld Multimeter
This is a NEW Fluke 789 Processmeter Handheld Multimeter that was tested prior to being listed and is in working condition.
Includes:
- NEW Fluke 789 Processmeter Handheld Multimeter Kit
Fluke 789 ProcessMeter Handheld Multimeter
The Fluke 789 ProcessMeter is a multifunction process troubleshooting instrument that combines a full-featured digital multimeter with a loop calibrator in a single handheld device. Designed for industrial process technicians, it enables measurement, sourcing, and simulation of electrical signals commonly used in automation and control systems, reducing the need to carry multiple instruments into the field.
The meter is widely used for maintaining transmitters, sensors, control loops, PLC systems, and process equipment. Its integrated 24 V loop power supply and precision milliamp functions make it particularly useful for diagnosing and calibrating process control instrumentation in manufacturing, utilities, and industrial facilities.
Key Features
● Combines digital multimeter and loop calibrator functions
● Sources, simulates, and measures 4–20 mA signals
● Built-in 24 V loop power supply
● True-RMS voltage measurement capability
● HART® mode with selectable loop resistor
● Auto-step and auto-ramp output functions
● Large dual display for process and electrical measurements
● Designed for industrial process control and instrumentation applications
| Specification | Value |
|---|---|
| Model | 789 ProcessMeter |
| DC Voltage | 1000 V |
| AC Voltage | 1000 V |
| Resistance | 40 MΩ |
| Frequency | 20 kHz |
| DC Current | 1 A |
| mA Source Range | 0–24 mA |
| mA Measure Range | 0–30 mA |
| Loop Power Supply | 24 V |
| Loop Resistor | 250 Ω HART Mode |
| Display Count | 4000 |
| Continuity Test | Yes |
| Diode Test | Yes |
| True-RMS | Yes |
| Safety Rating | CAT III 1000 V |
| Safety Rating | CAT IV 600 V |
| Power Supply | 4 × AA Batteries |
| Battery Life | Up to 140 Hours |
| Weight | 610 g |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5507 |
| Model | 789 Process Meter |
| Product Condition | New |
What's in the box?
- NEW Fluke 789 Processmeter Handheld Multimeter Kit
