Sign In for Member Pricing Fluke Biomedical ESA620 Electrical Safety Analyzer Tester
This is a good condition Fluke Biomedical ESA620 Electrical Safety Analyzer Tester that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

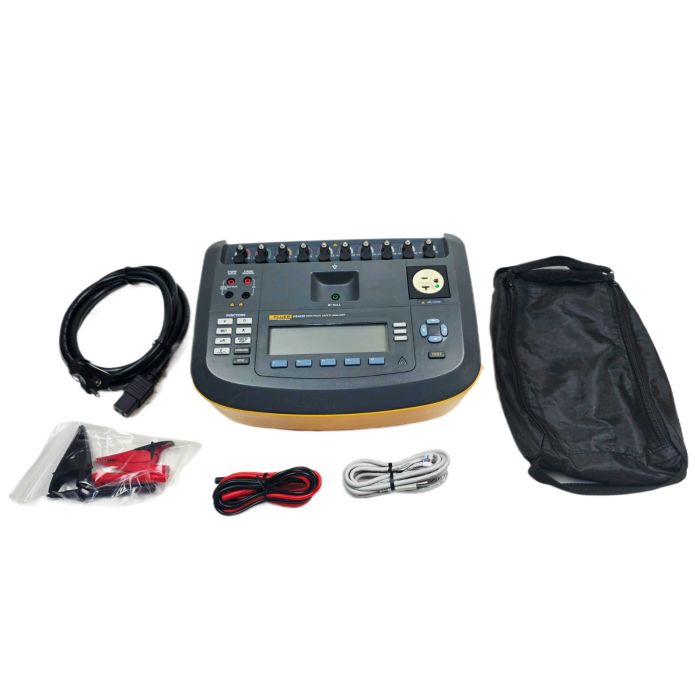

Fluke Biomedical ESA620 Electrical Safety Analyzer Tester
This is a good condition Fluke Biomedical ESA620 Electrical Safety Analyzer Tester that was tested prior to being listed and is in working condition.
Includes:
- Fluke Biomedical ESA620 Electrical Safety Analyzer Tester
- Leads
- Accessories
Fluke Biomedical ESA620 Electrical Safety Analyzer Tester
The Fluke Biomedical ESA620 Electrical Safety Analyzer is a portable all-in-one medical device safety tester designed to perform comprehensive electrical safety testing on medical equipment. It combines automated test sequences with manual testing capabilities, enabling biomedical engineers and healthcare technicians to verify compliance with international medical safety standards during preventive maintenance and equipment servicing.
The analyzer features an intuitive user interface, internal memory for test records, and battery-powered operation for convenient field use. Its compact design makes it suitable for hospitals, clinics, laboratories, and medical equipment service providers.
Key Features
● Comprehensive medical electrical safety testing
● Automated and manual test sequence capability
● Earth bond, insulation resistance, and leakage current testing
● Compliant with IEC 62353, IEC 60601, and AAMI safety standards
● Internal memory for storing test results
● Large backlit color display with intuitive navigation
● Battery-powered portable operation
● Designed for hospitals, laboratories, and biomedical service applications
| Specification | Value |
|---|---|
| Model | ESA620 |
| Product Type | Electrical Safety Analyzer |
| Safety Standards | IEC 62353, IEC 60601, AAMI ES1 |
| Earth Bond Test Current | 200 mA |
| Insulation Resistance Test | 500 V DC |
| Insulation Resistance Range | Up to 100 MΩ |
| Leakage Current Measurement | Yes |
| Earth Leakage Test | Yes |
| Enclosure Leakage Test | Yes |
| Patient Leakage Test | Yes |
| Display | Color Backlit LCD |
| Data Storage | Internal Memory |
| Connectivity | USB |
| Power Source | Rechargeable Battery / AC Power |
| Battery Runtime | Up to 8 Hours |
| Operating Temperature | 10°C to 40°C |
| Weight | Approx. 3.8 kg |
| Application | Medical Equipment Electrical Safety Testing |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5532 |
| Model | ESA620 |
| Product Condition | Used |
What's in the box?
- Fluke Biomedical ESA620 Electrical Safety Analyzer Tester
- Leads
- Accessories
