Sign In for Member Pricing Fluke Networks DSX-5000 Versiv 2 LAN Cable Certifier Tester DSX 5000 Cat6 Cat6a
$8,994.00
In stock
SKU
EV5442
Model:
Versiv DSX-5000
Product Condition:
Used
Log in for member pricing
This is a good condition Fluke Networks DSX-5000 Versiv 2 LAN Cable Certifier Tester DSX 5000 Cat6 Cat6a that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke Networks DSX-5000 Versiv 2 LAN Cable Certifier Tester DSX 5000 Cat6 Cat6a
This is a good condition Fluke Networks DSX-5000 Versiv 2 LAN Cable Certifier Tester DSX 5000 Cat6 Cat6a that was tested prior to being listed and is in working condition.

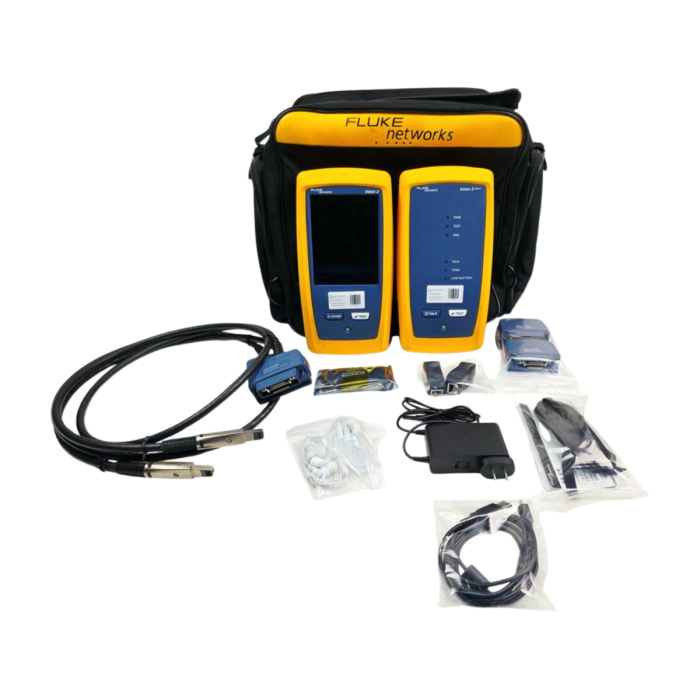

Includes:
- Fluke Networks Versiv 2 Mainframe
- Fluke Networks DSX-5000 Cat6a Cable Analyzer Module
- Fluke Networks Versiv 2 Remote
- Fluke Networks DSX-5000 Cat6a Cable Analyzer Module
- (2) Fluke Networks PLA-004 Link Adapters
- (2) Fluke Networks CHA-004 Channel Adapters
- (2) Termination Plugs
- (2) Earbuds
- (2) RJ11/RJ45 Adapters
- (1) AC Adapter/Charger
- USB PC Interface Cable
- (2) Straps For Units
- Carrying Case (Bag zipper is broken)
Fluke Networks DSX-5000 Versiv 2 LAN Cable Certifier Tester DSX 5000 Cat6 Cat6a
The Fluke Networks DSX-5000 Versiv 2 Cable Certifier is a professional copper cable testing system designed for certification, validation, and advanced troubleshooting of structured cabling networks. It is widely used in enterprise, data center, and telecom environments to certify Cat6, Cat6A, and lower category cabling against international performance standards.
It is part of the Versiv platform and provides ultra-fast, standards-compliant testing with advanced diagnostics for faults such as crosstalk, return loss, and wiring issues. The system supports full 10 Gigabit Ethernet certification and generates detailed graphical reports for professional documentation and network acceptance testing.
Key Features
● Full certification for Cat 3, Cat 5e, Cat 6, and Cat 6A cabling systems
● Supports ISO/IEC Class C, D, E, EA and TIA Category 3–6A standards
● High-speed Autotest for Cat 6A in approximately 10 seconds
● Frequency testing capability up to 1000 MHz (1 GHz)
● Advanced fault detection including NEXT, FEXT, return loss, and crosstalk analysis
● Graphical failure analysis showing distance-to-fault and wiring issues
● Supports PoE testing including resistance unbalance verification
● Stores up to ~12,000 test results with full graphical reporting
● Touchscreen interface for fast setup and simplified operation
● ProjX job management system for tracking and organizing test projects
● LinkWare software compatibility for professional reporting and documentation
● Designed for high-accuracy field certification and network acceptance testing
| Parameter | Details |
|---|---|
| Cable Standards | Cat 3 / 5 / 5e / 6 / 6A |
| ISO/IEC Classes | C, D, E, EA |
| Max Frequency | 1000 MHz (1 GHz) |
| Cat 6A Test Time | ~10 sec |
| Autotest Capability | Full 2-way certification |
| Test Parameters | Wire map, length, delay, NEXT, FEXT, return loss |
| Alien Crosstalk | Supported (PS ANEXT, AACR-F) |
| Storage Capacity | ~12,000 test results |
| Display | 5.7 inch capacitive touchscreen |
| Battery Life | ~8 hours |
| Battery Type | 7.2 V Li-ion |
| Weight | ~1.3 kg (main unit with module) |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -20 to 50 °C |
| Application | Network certification and copper cable testing |
Specifications
| Weight | 20 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5442 |
| Model | Versiv DSX-5000 |
| Product Condition | Used |
What's in the box?
- Fluke Networks Versiv 2 Mainframe
- Fluke Networks DSX-5000 Cat6a Cable Analyzer Module
- Fluke Networks Versiv 2 Remote
- Fluke Networks DSX-5000 Cat6a Cable Analyzer Module
- (2) Fluke Networks PLA-004 Link Adapters
- (2) Fluke Networks CHA-004 Channel Adapters
- (2) Termination Plugs
- (2) Earbuds
- (2) RJ11/RJ45 Adapters
- (1) AC Adapter/Charger
- USB PC Interface Cable
- (2) Straps For Units
- Carrying Case (Bag zipper is broken)
