Sign In for Member Pricing Fluke Networks DSX-8000 Versiv Cat6a Cat8 LAN Cable Certifier DSX-8000 DSX8000
This is a used condition Fluke Networks DSX-8000 Versiv Cat6a Cat8 LAN Cable Certifier DSX-8000 DSX8000 that was tested prior to being listed and is in working condition. Has some black marker writing on the sides and bottom of the unit which is blurred out.has some black marker writing on the sides and bottom of the unit which is blurred out.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fluke Networks DSX-8000 Versiv Cat6a Cat8 LAN Cable Certifier DSX-8000 DSX8000
This is a used condition Fluke Networks DSX-8000 Versiv Cat6a Cat8 LAN Cable Certifier DSX-8000 DSX8000 that was tested prior to being listed and is in working condition. Has some black marker writing on the sides and bottom of the unit which is blurred out.has some black marker writing on the sides and bottom of the unit which is blurred out.
Includes:
- Fluke Networks Versiv Mainframe
- Fluke Networks DSX-8000 Cat8 Cable Analyzer Module
- Calibration expired 02/2026
- Fluke Networks Versiv Remote
- Fluke Networks DSX-8000 Cat8 Cable Analyzer Module
- Calibration expired 02/2026
- (2) RJ11/RJ45 Universal Adapters
- USB PC Interface Cable
- (2) AC Adapter/Charger
- User Manual and CD-ROM
Fluke Networks DSX-8000 Versiv Cat6a Cat8 LAN Cable Certifier DSX-8000 DSX8000
The Fluke Networks DSX-8000 Versiv Cable Certifier is a high-performance copper cable certification system designed for testing and validating structured cabling installations up to Category 8 standards. It is part of the Versiv platform and is used by network professionals to certify twisted-pair cabling for high-speed Ethernet deployments, ensuring compliance with industry standards and optimal network performance.
The system utilizes advanced measurement technology to analyze parameters such as crosstalk, insertion loss, return loss, and signal integrity across a wide frequency range. It supports automated certification testing with rapid test times, integrated diagnostics, and cloud-enabled project management, making it suitable for data centers, enterprise networks, and high-speed infrastructure deployments.
Key Features
● Certifies copper cabling up to Cat 8 / 2 GHz performance
● Fast automated test time (≈ 8 sec for Cat 6A)
● Advanced diagnostics for fault location and cable issues
● Measures NEXT, return loss, insertion loss, and alien crosstalk
● Level VI / 2G accuracy for high-frequency certification
● Integrated Versiv platform for multi-test capability
● LinkWare Live cloud integration for project management
● Supports structured cabling standards (TIA & ISO)
● Designed for data centers and high-speed network installations
| Specification | Value |
|---|---|
| Product Type | LAN Cable Certifier (Copper) |
| Certification Capability | Cat 3 to Cat 8 |
| Maximum Test Frequency | 2000 MHz (2 GHz) |
| Test Time (Cat 6A) | ~8 seconds |
| Test Time (Cat 8) | ~15–16 seconds |
| Accuracy Level | Level VI / 2G |
| Cable Types | Shielded & Unshielded Twisted Pair |
| Standards Supported | TIA-568, ISO/IEC Classes C–I/II |
| Measurements | NEXT, PS NEXT, Return Loss, Insertion Loss |
| Crosstalk Testing | Alien Crosstalk (AXTalk) |
| Diagnostic Tests | HDTDX, HDTDR (~3 sec) |
| Internal Memory | ~5,000 Cat 8 / ~12,000 Cat 6A results |
| Impedance | 100 Ω / 120 Ω |
| Connector Types | RJ45, TERA, GG45 (via adapters) |
| Platform | Versiv Certification System |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5415 |
| Model | Dsx-8000 |
| Product Condition | Used |

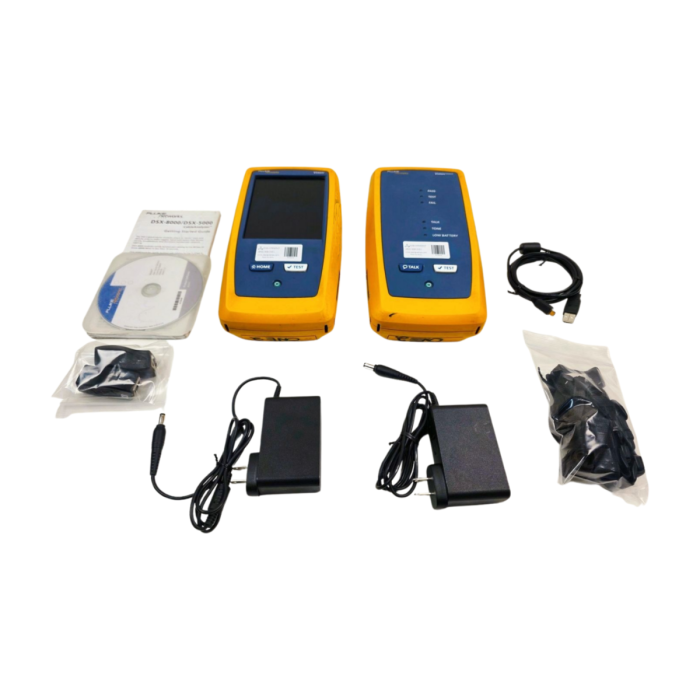

What's in the box?
- Fluke Networks Versiv Mainframe
- Fluke Networks DSX-8000 Cat8 Cable Analyzer Module
- Calibration expired 02/2026
- Fluke Networks Versiv Remote
- Fluke Networks DSX-8000 Cat8 Cable Analyzer Module
- Calibration expired 02/2026
- (2) RJ11/RJ45 Universal Adapters
- USB PC Interface Cable
- (2) AC Adapter/Charger
- User Manual and CD-ROM
