Fluke Networks Link IQ Cable Network Tester Kit LinkIQ Tester

Fluke Networks Link IQ Cable Network Tester Kit LinkIQ Tester

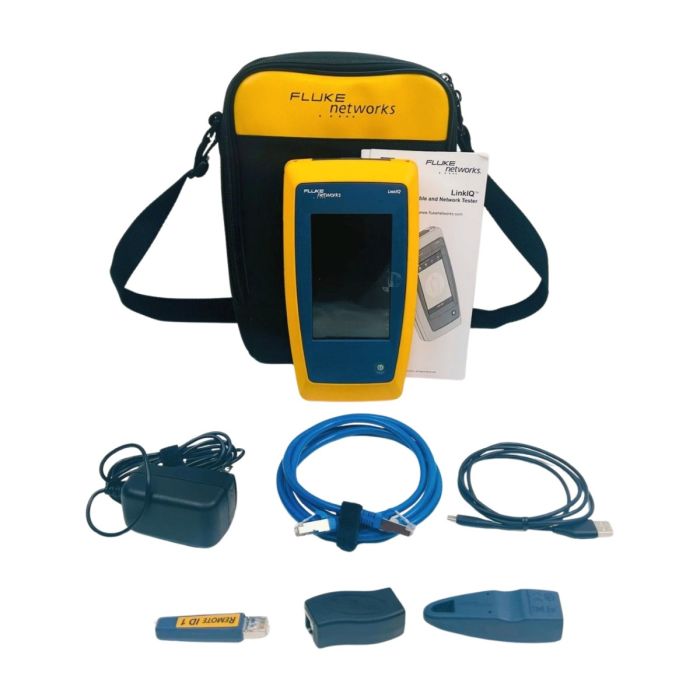

This is a used like new Fluke Networks Link IQ Cable Network Tester Kit LinkIQ Tester that is tested and working.

Includes:

• Fluke Networks LinkIQ Cable Network Tester
• Fluke Networks Remote ID (#1)
• (1) Ethernet Cable
• RJ11/RJ45 Universal Adapter
• USB PC Interface Cable
• Accessory Case
• User Manual
• Carrying Case
• Charger

Cable testing you trust. Network testing you need.

LinkIQ™ enables you to:

• Find maximum cabling speed (Up to 10 Gb/s).
• Install and troubleshoot PoE devices via Switch Negotiation and PoE Load Test. Ethernet Alliance PoE Certified for reliable multi-vendor interoperability.
• Discover connected switch information (Switch Name, IP address, Port Number, MAC Address, and VLAN)
• Test connectivity to TCP/IP network through IP configuration and ping
• Verify Gateway and DNS server responsiveness and availability
• Document your work through LinkWare™ PC


The LinkIQ™ is capable of measuring lengths up to 1000 feet (305 m) and provides distance to faults such as opens, shorts, and unterminated cable. Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs. The primary cable testing feature of LinkIQ™ is the cable performance test which qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10 Mb/s up to 10 Gb/s). It performs these tests via frequency-based measurements. Using IEEE-standards-based measurements ensures that tested links meet performance requirements as opposed to transmission testers which only prove that the specific test devices can communicate over the link. Operators may set performance requirements from 10 Mb/s to 10 Gb/s for a simple pass/fail indication.

In-Depth PoE Testing

While Power over Ethernet makes installation of devices such as security cameras and access points simpler, a survey by the Ethernet Alliance of over 800 installers, integrators and end users found that four of five respondents experienced difficulties in integrating PoE systems. Part of this can be traced to the fact that the IEEE offers three PoE standards, the term “PoE” is not registered and there are a variety of non-standards-compliant implementations as well.

Specifications:

Includes:

• Fluke Networks LinkIQ Cable Network Tester
• Fluke Networks Remote ID (#1)
• (1) Ethernet Cable
• RJ11/RJ45 Universal Adapter
• USB PC Interface Cable
• Accessory Case
• User Manual
• Carrying Case
• Charger
