Sign In for Member Pricing Fluke Networks Versiv 2 Optifiber Pro OTDR Kit W/ Quad OTDR Module
$7,297.00
In stock
SKU
EV5026
Model:
Versiv 2 Quad
Product Condition:
Refurbished
Log in for member pricing

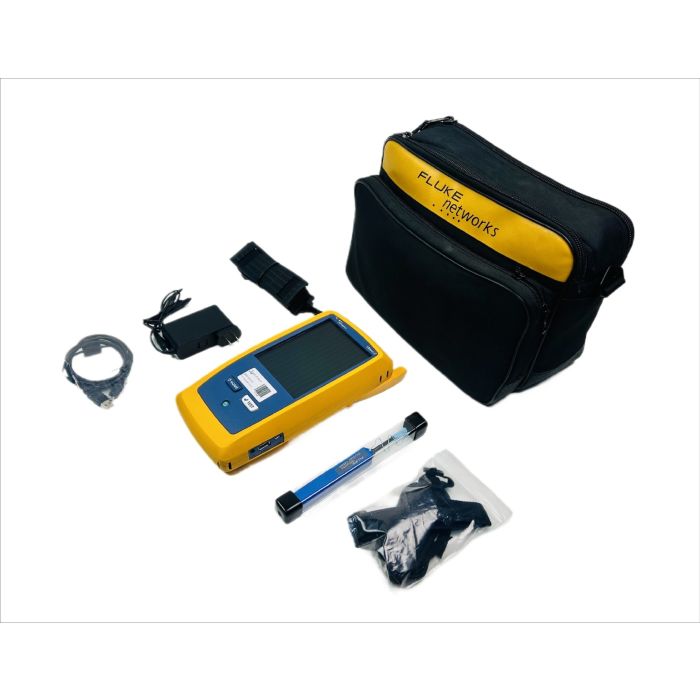

This is a good Condition Fluke Networks Versiv 2 Optifiber Pro OTDR Kit W/ Quad OTDR Module & case. Some writing on the back. What you see in the pictures is what you get. Nothing more. Nothing less. Please see pictures for more details. Customer service is our #1 priority so please don't hesitate to ask us questions or reach out.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
This is a good Condition Fluke Networks Versiv 2 Optifiber Pro OTDR Kit W/ Quad OTDR Module & case. Some writing on the back. What you see in the pictures is what you get. Nothing more. Nothing less. Please see pictures for more details. Customer service is our #1 priority so please don't hesitate to ask us questions or reach out.
Includes:
- Fluke Versiv 2 Mainframe
- Fluke Networks OFP-QUAD OptiFiber Pro SingleMode MultiMode Quad OTDR Module
- MM OTDR Source:
850nm
1300nm - SM OTDR Source:
1310nm
1550nm
- MM OTDR Source:
- VFL
- Case
As enterprise networks evolve, maintaining fiber performance demands advanced OTDR technology. Many OTDRs are designed for carriers, featuring unnecessary complexities for enterprise users. OptiFiber Pro addresses this gap, offering a purpose-built solution for network engineers, SAN designers, and cable installers.
Key Features:
-SmartLoop OTDR: Tests two fibers simultaneously, halving testing time and avoiding travel.
-Taptive Interface: Simplifies operation for all skill levels.
-LinkWare Software: Delivers superior test result analysis and reporting.
Performance Highlights:
-Quick Tests: Complete in as little as two seconds.
-Efficient Troubleshooting: Handles short patch cables and multiple connectors with ultra-short dead zones.
-Graphical EventMap™: Easily identifies connectors, splices, and high-loss areas.
-ProjX Management: Enhances ROI through project sharing and job-specific assignments.
-Fault Detection: Built-in Visual Fault Locator (VFL) identifies damaged fibers swiftly.
Standards Compliance:
-Certifies fiber performance per industry standards (ISO, TIA) or customer specifications.
Efficiency and Usability:
-ProjX Management System: Enables detailed project planning and user role assignment.
-Dynamic User Profiles: Facilitates job progress monitoring with pass/fail results.
-On-Screen Help: Provides context-sensitive corrective actions for fiber issues.
Innovative Technology:
-Short Dead Zones: Advanced optics detect close faults in connector-rich environments.
-Fast Data Acquisition: Quick Test mode captures data in just two seconds per wavelength.
-DataCenter OTDR Mode: One-touch setup for automatic parameter detection.
OptiFiber Pro is the premier OTDR for enterprise fiber networks, offering unparalleled efficiency, ease of use, and advanced troubleshooting capabilities.
| Quad OTDR Module Specifications | |
| Wavelengths | 850 nm +/- 10 nm, 1300 nm +35/-15 nm, 1310 nm +/- 25 nm, 1550 nm +/- 30 nm |
| Compatible fiber types | 50/125 µm, 62.5/125 µm, Singlemode |
| Event dead zone | 850 nm: 0.5 m (typical), 1300 nm: 0.7 m (typical) |
| 1310 nm: 0.6 m (typical), 1550 nm: 0.6 m (typical) | |
| Attenuation dead zone | 850 nm: 2.5 m (typical), 1300 nm: 4.5 m (typical) |
| 1310 nm: 3.6 m (typical), 1550 nm: 3.7 m (typical) | |
| Dynamic range | 850 nm: 28 dB (typical), 1300 nm: 30 dB (typical) |
| 1310 nm: 32 dB (typical), 1550 nm: 30 dB (typical) | |
| Max distance range setting | MM: 40 km, SM: 130 km |
| Distance measurement range | 850 nm: 9 km, 1300 nm: 35 km, 1310 nm: 80 km |
| 1550 nm: 130 km | |
| Reflectance range | 850 nm: -14 dB to -57 dB (typical), 1300 nm: -14 dB to -62 dB (typical) |
| 1310 nm: -14 dB to -65 dB (typical), 1550 nm: -14 dB to -65 dB (typical) | |
| Sample resolution | 3 cm to 400 cm |
| Pulse widths (nominal) | 850 nm: 3, 5, 20, 40, 200 ns, 1300 nm: 3, 5, 20, 40, 200, 1000 ns, 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns |
| Test time (per wavelength) | Auto setting: MM - 5 sec (typical) SM ﾖ 10 sec (typical) |
| Quick test setting: MM ﾖ 2 sec (typical) SM ﾖ 5 sec (typical) | |
| Best resolution setting: MM ﾖ 2 to 180 sec SM ﾖ 5 to 180 sec | |
| FaultMap setting: MM ﾖ 2 sec (typical) MM ﾖ 180 sec (max) SM ﾖ 10 sec (typical) SM ﾖ 180 sec (max) | |
| DataCenter OTDR setting: MM ﾖ 1 sec (typical at 850 nm) MM ﾖ 7 sec (max) SM ﾖ 20 sec (typical) SM ﾖ 40 sec (max) | |
| Manual setting: MM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec SM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec | |
| VFL Specifications | |
| On/Off control | Mechanical switch and a button on the touch screen |
| Output power | 316 µW (-5 dBm) = peak power = 1.0 mW (0 dBm) |
| Operating wavelength | 650 nm nominal |
| Spectral width (RMS) | ±3 nm |
| Output modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Connector adapter | 2.5mm universal |
| Laser safety (classification) | Class II CDRH Complies to EN 60825-2 |
| General specifications | |
| Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
| Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm) |
| Battery | Lithium ion battery pack, 7.2 volts |
| Battery life | 8 hr Auto OTDR operation, dual wavelength no video probe connected, 150 m of fiber |
| Operating temperature | -18ºC to 45ºC |
| Non-operating temperature | -30ºC to 60ºC |
| Operating altitude | 4,000 m (13,123 ft), 3,200 m (10,500 ft) with AC adapter |
| Storage altitude | 12,000 m |
| EMC | EN 61326-1 |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Fluke |
| MPN | EV5026 |
| Model | Versiv 2 Quad |
| Product Condition | Refurbished |
What's in the box?
- Fluke Versiv 2 Mainframe
- Fluke Networks OFP-QUAD OptiFiber Pro SingleMode MultiMode Quad OTDR Module
- MM OTDR Source:
850nm
1300nm - SM OTDR Source:
1310nm
1550nm
- MM OTDR Source:
- VFL
- Case
