Sign In for Member Pricing Fujikura 45S SM MM Fusion Splicer w/ CT-50 Cleaver ARC 524 45 S
This is a good condition Fujikura 45S SM MM Cladding Alignment Fiber Fusion Splicer w/ CT-50 Cleaver ARC 524 that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Fujikura 45S SM MM Cladding Alignment Fiber Fusion Splicer w/ CT-50 Cleaver ARC 524
This is a good condition Fujikura 45S SM MM Cladding Alignment Fiber Fusion Splicer w/ CT-50 Cleaver ARC 524 that was tested prior to being listed and is in working condition.

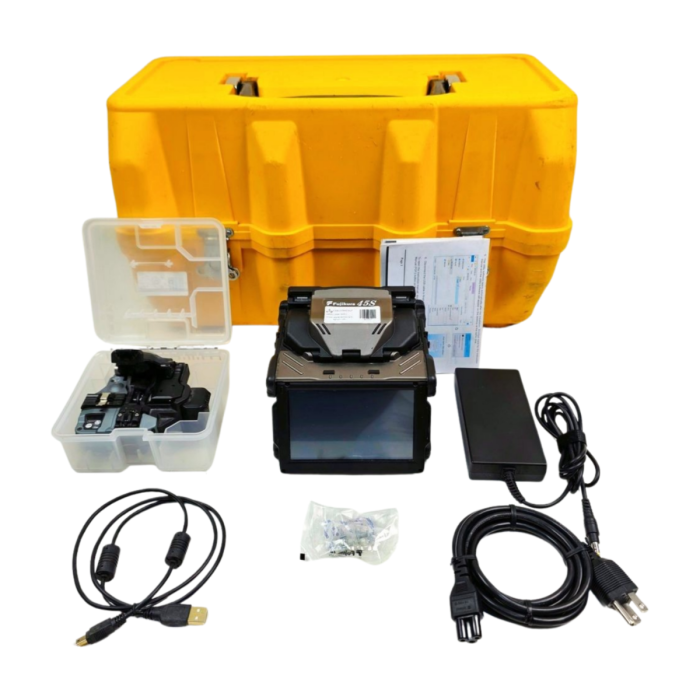

Includes:
- Fujikura 45S Fiber Fusion Splicer (524 ARC count)
- Fujikura CT50 High Precision Fiber Cleaver w/ Case
- Work Tray
- (2) Spare Electrodes
- Power Supply (not original)
- USB PC Interface Cable
- Hard Carrying Case
Fujikura 45S SM MM Cladding Alignment Fiber Fusion Splicer w/ CT-50 Cleaver ARC 524
The Fujikura 45S Fiber Fusion Splicer is a professional cladding alignment splicing system designed for single-mode and multimode optical fiber splicing. It utilizes advanced arc fusion technology combined with active clad alignment to deliver consistent low-loss splices across various fiber types. The system integrates intelligent fusion control that analyzes fiber conditions in real time and adjusts arc parameters to ensure optimal splice quality in different environments.
Paired with the CT-50 cleaver, the system enhances workflow efficiency through synchronized operation and blade management technology. It supports fast splicing cycles, automated fiber alignment, and precise cleaving, making it suitable for telecom deployments, FTTx installations, and fiber network maintenance operations.
Key Features
● Active cladding alignment technology for stable low-loss splicing
● Fast splice time with automated arc calibration
● Real-time fusion control based on fiber condition
● Supports single-mode and multimode fibers
● Integrated CT-50 cleaver with automatic blade management
● Simultaneous fiber preparation and dual fiber handling
● Automatic fiber positioning correction and clamp operation
● Optimized for FTTx, telecom, and network deployments
● Consistent splice quality in varying environmental conditions
| Specification | Value |
|---|---|
| Alignment Method | Active Clad Alignment |
| Fiber Types | SM (G.652, G.657), MM (G.651), DSF, NZDSF |
| Typical Splice Loss (SM G.652) | ~0.03 dB |
| Typical Splice Loss (MM G.651) | ~0.01 dB |
| Splice Time (SM Fast Mode) | ~6–7 sec |
| Heat Time (60 mm Sleeve) | ~15–22 sec |
| Cleave Length | 5 – 16 mm |
| Fiber Cladding Diameter | 125 µm |
| Coating Diameter | Up to 3000 µm |
| Tensile Test Force | ~2.0 N |
| Electrode Life | ~6000 arcs |
| Magnification | 132x – 300x |
| Internal Storage | Up to 20,000 splice results |
| Splice Modes | ~100 modes |
| Heat Modes | ~30 modes |
| Display | 5-inch Touchscreen LCD |
| Connectivity | Bluetooth (cleaver & mobile integration) |
| Cleaver Model | CT-50 with Auto Blade Rotation |
| Applications | FTTx, Telecom, Data Networks |
Specifications
| Weight | 10 lbs |
|---|---|
| MPN | EV5417 |
| Model | 45S |
| Product Condition | Used |
What's in the box?
- Fujikura 45S Fiber Fusion Splicer (524 ARC count)
- Fujikura CT50 High Precision Fiber Cleaver w/ Case
- Work Tray
- (2) Spare Electrodes
- Power Supply (not original)
- USB PC Interface Cable
- Hard Carrying Case
