Sign In for Member Pricing Fujikura 70R SM MM Ribbon Fiber Fusion Splicer 2860 ARC
This is a good condition Fujikura 70R SM MM Ribbon Fiber Fusion Splicer 2860 ARC that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

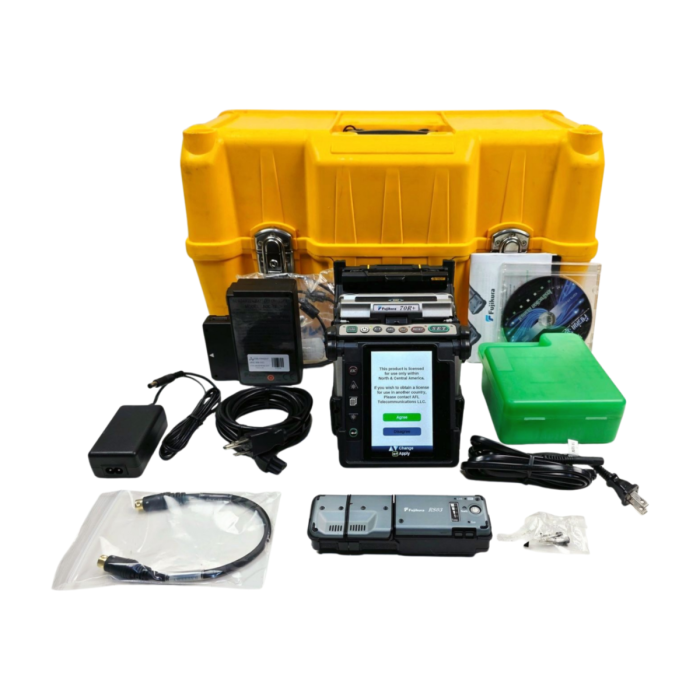

Fujikura 70R SM MM Ribbon Fiber Fusion Splicer 2860 ARC
This is a good condition Fujikura 70R SM MM Ribbon Fiber Fusion Splicer 2860 ARC that was tested prior to being listed and is in working condition.
Includes:
- Fujikura 70R Ribbon Fiber Fusion Splicer
- 2860 ARC Count
- Fujikura CT-30 High Precision Fiber Cleaver w/ Case
- Fujikura RS03 Fiber Stripper
- FH-50-250 Fiber Holder Set
- FH-50-12 Fiber Holder Set
- Fujikura ADC-18 AC Adapter
- Fujikura BTR-09 Battery Pack
- DCC-18 Charge Cable
- Power Cord
- USB PC Interface Cable
- Hard Carrying Case
Fujikura 70R SM MM Ribbon Fiber Fusion Splicer 2860 ARC
The Fujikura 70R Ribbon Fiber Fusion Splicer is a high-performance splicing system designed for mass fusion of ribbon fibers in telecom backbone networks, FTTH deployments, and large-scale fiber infrastructure projects. It supports simultaneous splicing of multiple fibers, significantly increasing productivity in high-density fiber environments.
It utilizes precision fixed V-groove alignment technology combined with automated operational features to streamline the splicing process. The system is optimized for speed, durability, and efficiency, offering fast splice and heating cycles along with rugged construction for reliable performance in demanding field conditions.
Key Features
● Ribbon fiber splicing capability up to 12 fibers simultaneously
● Fixed V-groove alignment system for stable multi-fiber positioning
● Fast splice time of approx. 11 sec (SM Fast mode)
● Tube heating time as low as 18 sec for rapid protection sleeve shrinking
● Automated wind protector for faster and consistent splicing workflow
● Programmable automation features for customized operation
● Ruggedized design with impact-resistant body for field use
● High-resolution 4.7-inch display for clear fiber alignment visualization
● Supports SM, MM, DS, and NZDS fiber types
● Battery capacity supporting up to 110 splice and heat cycles per charge
● Multi-function carrying case with integrated workstation
● Reduced manual steps for faster overall splicing process
| Parameter | Details |
|---|---|
| Fiber Type Support | SM (G.652/657), MM (G.651), DS (G.653), NZDS (G.655) |
| Fiber Count | 1 to 12 fibers |
| Alignment Method | Fixed V-groove (ribbon alignment) |
| Typical Splice Loss | 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS/NZDS) |
| Splice Time | 11 sec (SM Fast), 15 sec (SM Auto) |
| Tube Heating Time | 18 sec (typical), ~40 sec (ribbon sleeve) |
| Fiber Cladding Diameter | 125 µm |
| Coating Diameter | 250 µm / 900 µm / Ribbon 0.25–0.4 mm |
| Cleave Length | 10 – 13 mm |
| Display Size | 4.7 inch LCD |
| Battery Capacity | ~110 splice/heat cycles |
| Splice Modes | 100+ |
| Heating Modes | 30+ |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -40 to 80 °C |
Specifications
| Weight | 25 lbs |
|---|---|
| MPN | EV5439 |
| Model | 70R |
| Product Condition | Used |
What's in the box?
- Fujikura 70R Ribbon Fiber Fusion Splicer
- 2860 ARC Count
- Fujikura CT-30 High Precision Fiber Cleaver w/ Case
- Fujikura RS03 Fiber Stripper
- FH-50-250 Fiber Holder Set
- FH-50-12 Fiber Holder Set
- Fujikura ADC-18 AC Adapter
- Fujikura BTR-09 Battery Pack
- DCC-18 Charge Cable
- Power Cord
- USB PC Interface Cable
- Hard Carrying Case
