Sign In for Member Pricing Hioki RM3548 Multimeter High-Precision Portable Resistance Milli-Ohmmeter
This is a good condition Hioki RM3548 Multimeter, High-Precision Portable Resistance Milli-Ohmmeter that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

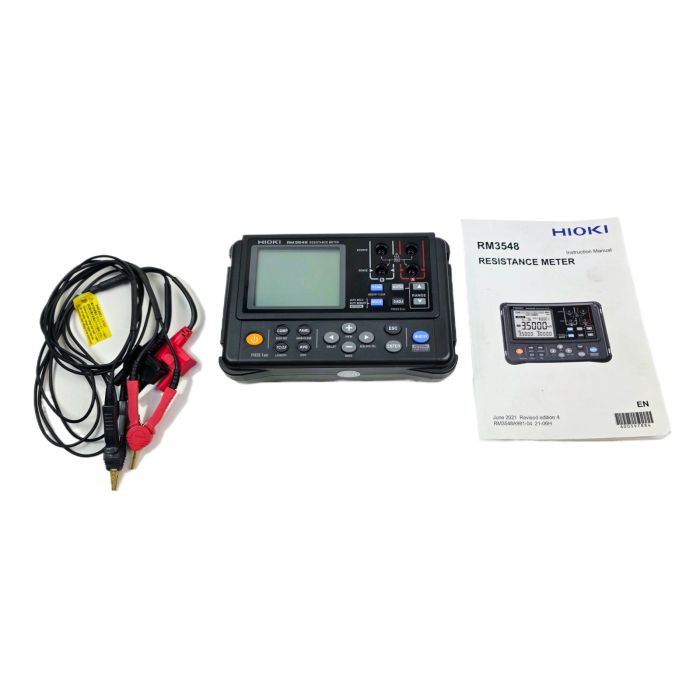

Hioki RM3548 Multimeter High-Precision Portable Resistance Milli-Ohmmeter
This is a good condition Hioki RM3548 Multimeter, High-Precision Portable Resistance Milli-Ohmmeter that was tested prior to being listed and is in working condition.
Includes:
- Hioki RM3548 Multimeter, High-Precision Portable Resistance Milli-Ohmmeter
- Leads
- Manual
Hioki RM3548 High-Precision Portable Resistance Milli-Ohmmeter
The Hioki RM3548 is a high-precision portable resistance meter designed for measuring very low resistance values with exceptional accuracy. It is widely used in electrical maintenance, manufacturing, automotive, aerospace, and research applications for testing motor windings, transformers, relays, switches, connectors, welds, and bonding resistance.
Utilizing a four-terminal Kelvin measurement method, the RM3548 minimizes lead resistance errors and delivers stable, repeatable measurements from micro-ohms to mega-ohms. Its portable battery-powered design, high-speed sampling, and internal memory make it ideal for both field inspections and production line quality control.
Key Features
● High-precision four-terminal (Kelvin) resistance measurement
● Measures resistance from micro-ohms to mega-ohms
● High-speed measurement for production and maintenance testing
● Portable battery-powered operation
● Comparator function with PASS/FAIL indication
● Internal memory for storing measurement data
● Temperature compensation capability
● Suitable for motors, transformers, connectors, and weld inspection
| Specification | Value |
|---|---|
| Model | RM3548 |
| Product Type | Portable Resistance Milli-Ohmmeter |
| Measurement Method | 4-Terminal Kelvin |
| Resistance Range | 0.00 µΩ to 3.5 MΩ |
| Maximum Resolution | 0.01 µΩ |
| Basic Accuracy | ±0.02% rdg. ±0.006% f.s. |
| Test Current | Up to 1 A |
| Sampling Rate | Approx. 60 Measurements/sec |
| Comparator Function | PASS / FAIL |
| Data Storage | Internal Memory |
| Display | Backlit LCD |
| Connectivity | USB |
| Power Source | Rechargeable Battery / AA Batteries |
| Battery Runtime | Up to 10 Hours |
| Operating Temperature | 0°C to 40°C |
| Weight | Approx. 950 g |
| Application | Low Resistance Testing & Quality Control |
Specifications
| Weight | 10 lbs |
|---|---|
| MPN | EV5456 |
| Model | Rm3548 |
| Product Condition | Used |
What's in the box?
- Hioki RM3548 Multimeter, High-Precision Portable Resistance Milli-Ohmmeter
- Leads
- Manual
