Sign In for Member Pricing JDSU Viavi SmartOTDR E126A SM 1310/1550 Fiber Optic OTDR Power Meter VFL P5000i
This is an excellent condition JDSU Viavi SmartOTDR E126A SM 1310/1550 Fiber Optic OTDR Power Meter VFL P5000i that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview

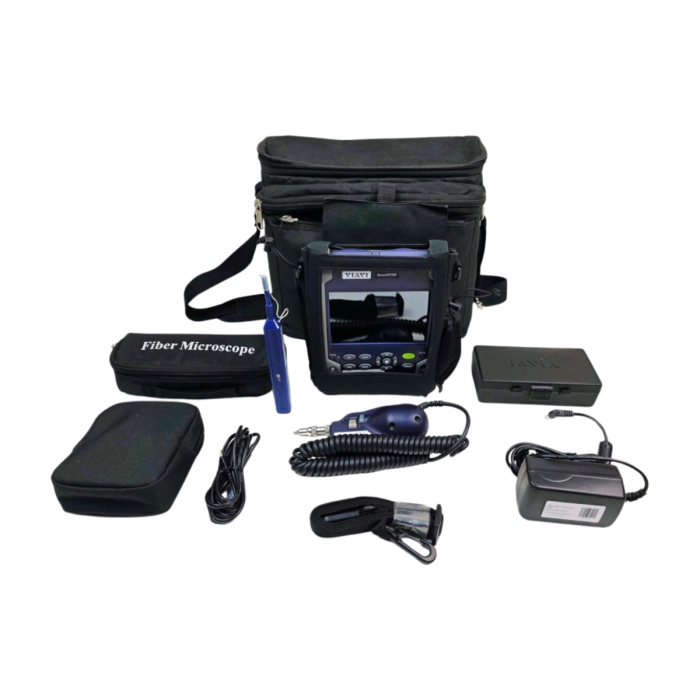

JDSU Viavi SmartOTDR E126A SM 1310/1550 Fiber Optic OTDR Power Meter VFL P5000i
This is an excellent condition JDSU Viavi SmartOTDR E126A SM 1310/1550 Fiber Optic OTDR Power Meter VFL P5000i that was tested prior to being listed and is in working condition.
Includes:
- Viavi SmartOTDR E126A SM Fiber OTDR
- SM OTDR Source:
- 1310nm
- 1550nm
- SC Connector For Source
- VFL
- Power Meter
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
- SM OTDR Source:
- AC Adapter/Charger
- USB PC Interface Cable
- Carrying Case w/ Strap
JDSU Viavi SmartOTDR E126A SM 1310/1550 Fiber Optic OTDR Power Meter VFL P5000i
The JDSU Viavi SmartOTDR E126A is a handheld fiber optic testing platform designed for installation, troubleshooting, and maintenance of single-mode fiber networks. It integrates OTDR functionality with additional tools such as an optical power meter, visual fault locator, and fiber inspection capabilities, making it a complete solution for field technicians working on metro, access, and FTTH networks.
It features automated test workflows with one-touch operation and intelligent analysis, allowing users to quickly detect faults, measure link performance, and generate clear pass/fail results. The system is optimized for field efficiency with a compact design, high-visibility touchscreen, and advanced connectivity options for data transfer and reporting.
Key Features
● Dual-wavelength OTDR operation at 1310 nm and 1550 nm for single-mode fiber testing
● Integrated optical power meter and visual fault locator (VFL) for complete testing
● Optional P5000i fiber inspection probe support for connector analysis
● Dynamic range up to ~37 dB (1310 nm) / ~35 dB (1550 nm)
● One-touch AutoTest with automatic event detection and pass/fail analysis
● Smart Link Mapper (SLM) graphical view for simplified OTDR trace interpretation
● Event dead zone as low as ~1.35 m for precise fault localization
● Integrated CW light source for insertion loss testing
● Large 5-inch outdoor-readable touchscreen display
● Built-in wireless connectivity options (USB, optional Wi-Fi / Bluetooth / 3G/4G)
● Long battery operation up to ~20 hours for full-day field use
● Supports PON testing through splitters up to 1x128 ratio
Key Features
● Dual-wavelength OTDR operation at 1310 nm and 1550 nm for single-mode fiber testing
● Integrated optical power meter and visual fault locator (VFL) for complete testing
● Optional P5000i fiber inspection probe support for connector analysis
● Dynamic range up to ~37 dB (1310 nm) / ~35 dB (1550 nm)
● One-touch AutoTest with automatic event detection and pass/fail analysis
● Smart Link Mapper (SLM) graphical view for simplified OTDR trace interpretation
● Event dead zone as low as ~1.35 m for precise fault localization
● Integrated CW light source for insertion loss testing
● Large 5-inch outdoor-readable touchscreen display
● Built-in wireless connectivity options (USB, optional Wi-Fi / Bluetooth / 3G/4G)
● Long battery operation up to ~20 hours for full-day field use
● Supports PON testing through splitters up to 1x128 ratio
| Parameter | Details |
|---|---|
| Wavelengths | 1310 / 1550 nm |
| Fiber Type | Single-mode (SM) |
| Dynamic Range | ~37 dB (1310 nm) / ~35 dB (1550 nm) |
| Pulse Width Range | 5 ns – 20 µs |
| Event Dead Zone | ~1.35 m |
| Attenuation Dead Zone | ~4 m |
| Connector Type | SC/APC |
| Display Size | 5 inch touchscreen |
| Battery Life | Up to ~20 hours |
| Connectivity | USB / Optional Wi-Fi / Bluetooth / 3G/4G |
| Integrated Tools | OTDR + OPM + VFL + Light Source |
| PON Testing Capability | Up to 1x128 split ratio |
| Measurement Modes | OTDR / SLM / Power Meter |
| Application | Fiber installation, troubleshooting, FTTH, metro networks |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | JDSU |
| MPN | EV5444 |
| Model | E126a |
| Product Condition | Used |
What's in the box?
- Viavi SmartOTDR E126A SM Fiber OTDR
- SM OTDR Source:
- 1310nm
- 1550nm
- SC Connector For Source
- VFL
- Power Meter
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
- SM OTDR Source:
- AC Adapter/Charger
- USB PC Interface Cable
- Carrying Case w/ Strap
