Sign In for Member Pricing Tektronix 2 Series MSO24 200MHz Oscilloscope 2-BW-200 Mixed Signal Scope
This is a great condition Tektronix 2 Series MSO24 200MHz Oscilloscope 2-BW-200 Mixed Signal Scope that was tested prior to being listed and is in working condition.
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Tektronix 2 Series MSO24 200MHz Oscilloscope 2-BW-200 Mixed Signal Scope
This is a great condition Tektronix 2 Series MSO24 200MHz Oscilloscope 2-BW-200 Mixed Signal Scope that was tested prior to being listed and is in working condition.

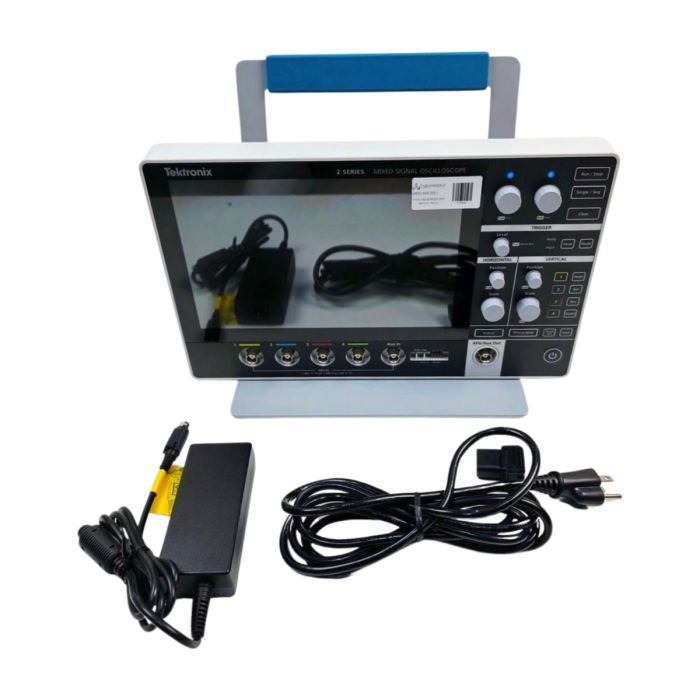

Includes:
- Tektronix MSO24 200MHz Oscilloscope 2-BW-200 NIST Calibrated Mixed Signal Scope
- Charger
The Tektronix 2 Series MSO24 200 MHz Mixed Signal Oscilloscope is a compact, high-performance test instrument designed for advanced electronic debugging, signal analysis, and embedded system development. It combines oscilloscope functionality with mixed signal capabilities, allowing engineers to analyze both analog and digital signals within a single platform.
The device features a modern touchscreen interface and advanced waveform analysis tools, enabling fast insight into signal behavior. With high sampling rates and deep memory, it captures fast transients and detailed signal patterns accurately. Its portable and space-saving design makes it suitable for lab benches, field testing, and R&D environments.
Key Features
● 200 MHz bandwidth for general-purpose and embedded signal analysis
● Up to 2.5 GS/s real-time sampling for high-speed capture
● 4 analog channels with optional 16 digital MSO channels
● Large 10.1-inch capacitive touchscreen interface
● Advanced triggering and protocol decode capabilities
● Built-in FFT, waveform math, and automated measurements
● Compact low-profile design (~1.5 inch thick) for space efficiency
● Optional battery operation for field portability
● Integrated tools like DVM, frequency counter, and signal generator
| Specification | Value |
|---|---|
| Product Type | Mixed Signal Oscilloscope |
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 (optional MSO upgrade) |
| Real-Time Sampling Rate | 2.5 GS/s (half channels), 1.25 GS/s (all channels) |
| Record Length | 10 Mpts |
| Rise Time | ~1.75 ns |
| Display Size | 10.1 inch |
| Display Type | Capacitive Touchscreen LCD |
| Vertical Sensitivity | 2 mV/div to 100 V/div |
| Timebase Range | ~2 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ |
| Trigger Types | Edge, Pulse, Bus, Logic |
| Measurements | 36 Automated Measurements |
| FFT Analysis | Yes |
| Connectivity | USB, LAN (TekDrive support) |
| Optional Features | MSO, AFG (50 MHz), Serial Decode |
| Form Factor | ~1.5 inch thin portable design |
Specifications
| Weight | 10 lbs |
|---|---|
| MPN | EV5462 |
| Model | MSO24 |
| Product Condition | Used |
What's in the box?
- Tektronix MSO24 200MHz Oscilloscope 2-BW-200 NIST Calibrated Mixed Signal Scope
- Charger
