Thermo Scientific Niton XL5 XRF Analyzer Soils & Minerals W Soil Kit READ

Thermo Scientific Niton XL5 XRF Analyzer Licensed for Soils and Minerals 03/2018 with Soil Kit READ

READ - This unit fails the System check! See images - we are selling as-is parts and service needed.

This is a used Thermo Scientific Niton XL5 XRF Analyzer Licensed for Soils and Minerals and comes with a Soil Kit, manufacture date is 03/2018. This unit was tested on soil and mining samples. The unit is in excellent condition with only 320 tests done.

Please note when running system health check unit prompts for "Please wait for detector temperature to stabilize at working level before proceeding." It passed system health check as well (See screenshot) however at times it stays on the "Please wait for detector temperature to stabilize at working level before proceeding" screen when performing a system health check.

This may be normal, but we pride ourselves in fully explaining everything needed.

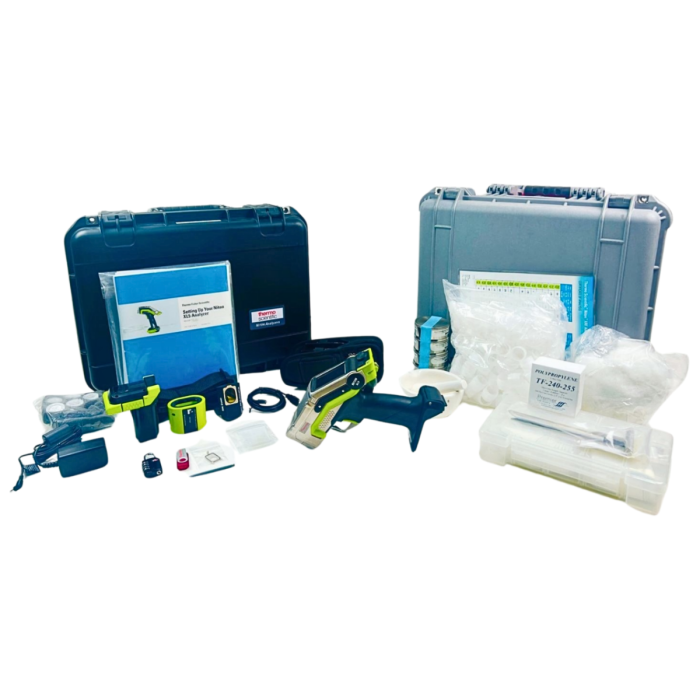

Includes:

• Thermo Scientific Niton XL5 Handheld XRF Analyzer
• Licensed for:

  • Soils
  • Mining
• Manufacture Date 03/2018
• Soil Kit (420-033)
• One Thermo Scientific Niton XL5 Lithium Ion Battery
• Thermo Scientific Niton XL5 PN 800-02071 Charging Doc
• AC adapter/Charger for dock
• Extra Windows
• USB interface cable
• Safety Padlock
• Manual
• USB
• Hard Carrying case
• Soil Guard

Confidently perform elemental analysis with the Thermo Scientific™ Niton™ XL5 Plus handheld XRF analyzer; it delivers unprecedented performance even for lightweight elements. Identify pure metals and alloys, detect tramp elements, or obtain geochemical data. Industrial businesses rely on the Niton XL5 Plus analyzer for more than just low detection limits. It generates fast results and offers great versatility such as the ability to scan a broad range of materials with a single analyzer.
Features

5W X-ray tube
Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
Lightweight design (2.8 lbs/ 1.3 kg)
Miniaturized nose
WiFi enabled
Macro and micro cameras
Hot swap battery
Tilting, color touchscreen
Directional keys
Password protected security
IP54 certified (splash/dust proof)
Applications

Specifications

Data Storage
512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)

Data Transfer
WiFi, USB-c

Description
Niton XL5 Plus Handheld XRF Analyzer

Detector Type
High count rate, high resolution, extra large area silicon drift detector (1μm graphene window). Detector ProGuard protection included.

Display Type
Tilting, color, resistive touchscreen display

Optional Accessories
Portable test stand
Mini test stand
Backscatter shield
Hotwork stand off
Soil guard
Belt holster
Bluetooth printer

Power Consumption
12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply. Hot swap functionality keeps analyzer powered during battery replacements.

Security Features
Password-protected user security

Standard Accessories
Locking shielded carrying case
Two (2) lithium-ion battery packs
One (1) 110/220 VAC battery charger/AC adaptor
Check samples
Safety lanyard
PC connection cable (USB)

System Details
Built-in standardization and health check verify system integrity and operating conditions

Weight (English)
2.8 lb. with battery

Weight (Metric)
1.3 kg with battery

Data Entry
Touchscreen keyboard
User customizable data entry
Optional wireless remote barcode reader

Licensing
Varies by region. Contact your local distributor.

Dimensions (L x W x H)
9.54 x 8.19 x 2.67 in. (24.23 x 20.8 x 6.78 cm)

Languages
English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian

X-Ray Source Type
X-ray tube: Ag anode (6-50kV, 0-500uA, 5W max)
