Sign In for Member Pricing Wilden P25/PZPPP/TNL/TF/PTV AODD Pump, 0.25" Pro-Flo
$594.00
In stock
SKU
EV5097
Model:
P25/PZPPP/TNL/TF/PTV
Product Condition:
New
Log in for member pricing
Looking to sell your equipment? Get a quick offer on your new & used test equipment, XRF, analyzer, utility locator etc. Sell to Us
Product Overview
Wilden P25/PZPPP/TNL/TF/PTV AODD Pump, 0.25" Pro-Flo
This is New
Includes:
- P25/PZPPP/TNL/TF/PTV
As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump has been specifically designed to increase productivity while reducing air and energy consumption. It utilizes a bolted design for superior product containment in many applications, especially for dangerous or valuable media. Designed for difficult applications, this pump is perfect for chemical and wastewater applications where flow, efficiency and routine maintenance are required.
Fitted with robust Pro-Flo ADS
Bolted construction for superior containment
Self-priming
Dry run without damage
Shear-sensitive
Longest Mean Time Between Repair (MTBR)
Superior anti-freezing
Increased On/Off reliability
Features
| Series: | Pro-Flo |
| Product Model: | P25 |
| Connection Outlet Size: | 0.25" (6 mm) |
| Connection Inlet Size: | 0.25" (6 mm) |
| Wetted Path Material: | Polypropylene |
| Construction: | Bolted |
| Backup Diaphragms Material: | Neoprene |
| Connection Type: | NPT/BSP |
| Diaphragm Design: | Integral Piston |
| Diaphragm Flow Capacity: | Full Stroke |
| Max Flow Capacity: | 4.4 gpm |
| Valve Balls: | PTFE |
| Seats Material: | Polypropylene |
| Seats Seal: | FKM Encapsulated PTFE |
| Differential Pressure Ratio: | 1:1 |
| Max Air Inlet Pressure: | 125 psi |
| Max Solid Size: | 1/32" (0.8 mm) |
| Lower Temperature Limit: | 40 F |
| Upper Temperature Limit: | 175 F |
| Primary Diaphragms Material: | PTFE |
| Product Weight: | 4 lbs (1.8 kg) |
Specifications
| Weight | 10 lbs |
|---|---|
| Brand | Wilden |
| MPN | EV5097 |
| Model | P25/PZPPP/TNL/TF/PTV |
| Product Condition | New |

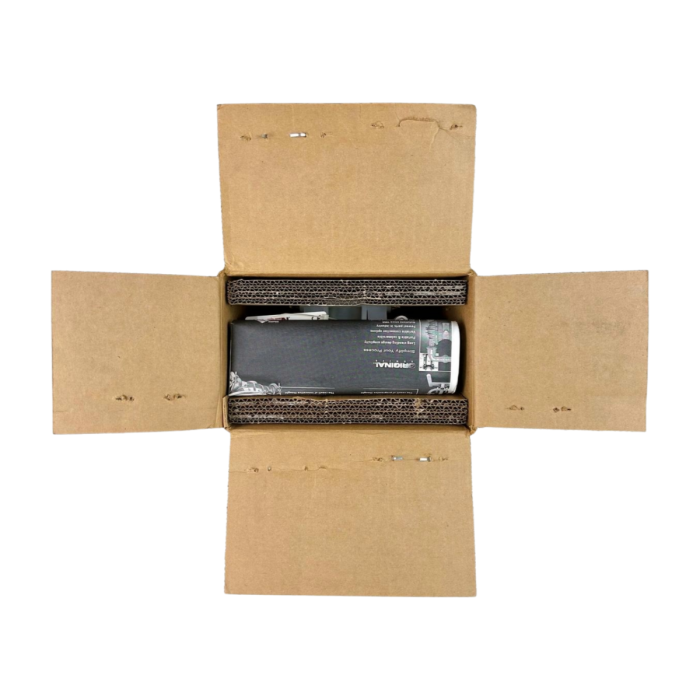

What's in the box?
- P25/PZPPP/TNL/TF/PTV
